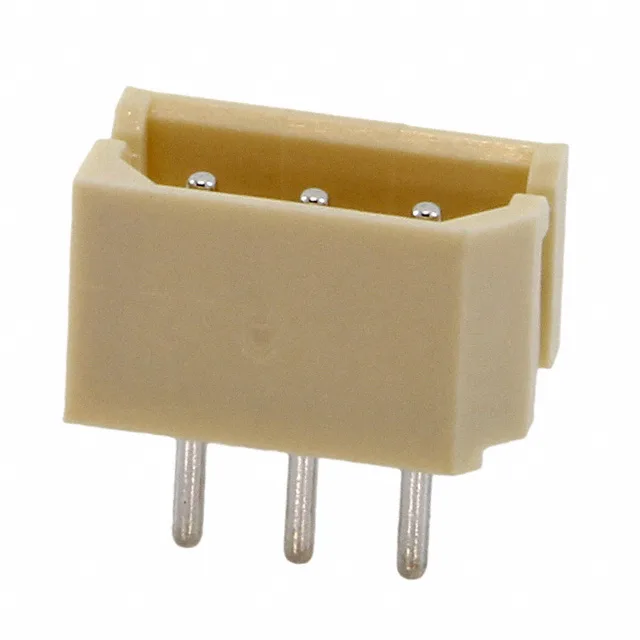

TE Connectivity AMP Connectors, High Performance Interconnect (HPI) series, header, 3 circuits, 2.50mm pitch, shrouded 4-wall, locking ramp, through-hole solder, tin-plated contacts, UL94 V-2, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Ivory |
| Insulation height | 0.232\" (5.90mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 50.0µin (1.27µm) |
The 1470224-3: The 4-wall shroud surrounds the pins completely, so the mating receptacle is guided into alignment before the contacts touch — no bent pins from a skewed cable plug.
Supplied in bulk packaging, ROHS3 compliant. The base product number is 1470224, so if you need a different position count or plating option, that's the family to search.
