The 1470364-6 is a 6-position, single-row receptacle housing from TE's High Performance Interconnect (HPI) series.
At 1.00mm pitch, this housing is suited for signal-level circuits where board space is tight.
1470364-6 TE Connectivity HPI Receptacle Housing 6 Pos
MPN1470364-6
Active

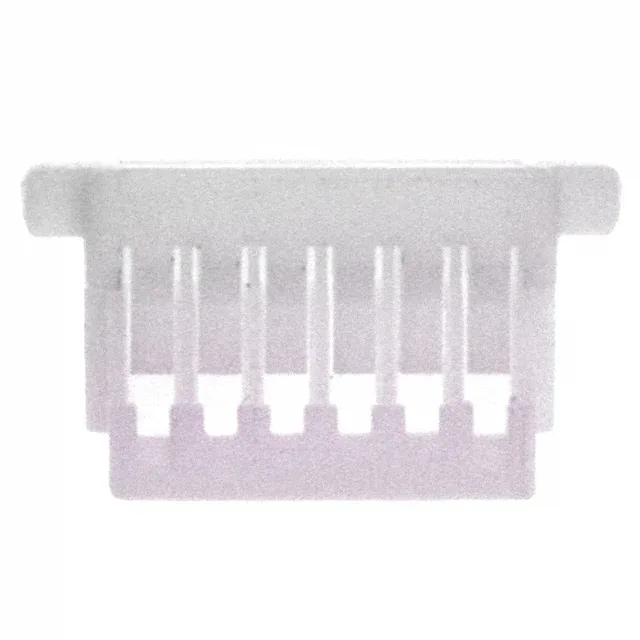

TE Connectivity AMP Connectors High Performance Interconnect (HPI) receptacle housing, 1470364-6, 6-position single-row, 0.039" (1.00mm) pitch, white thermoplastic, free-hanging, crimp termination, contacts not included.
$0.4800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesHigh Performance Interconnect (HPI)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -55°C ~ 105°C |
| Color | White |
| Insulation material | Thermoplastic |
| Note | Contacts Not Included |
| Pitch | 0.039\" (1.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 6 |
Product details
Frequently asked questions
Does the 1470364-6 include contacts?
No.
What is the mating connector for 1470364-6?
The 1470364-6 is a receptacle housing that mates with a 6-position, 1.00mm pitch board-mount header from the same HPI series. Confirm the header's position count and pitch match before ordering.
