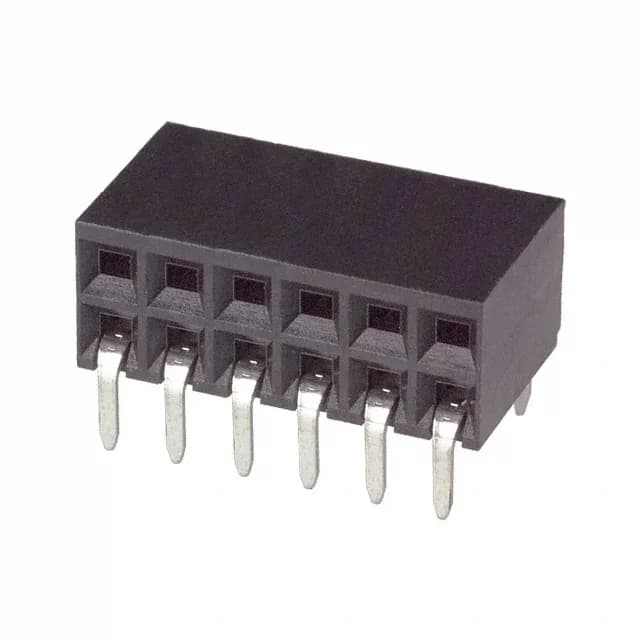

TE Connectivity AMPMODU Mod II receptacle, 0.100" (2.54 mm) pitch, 12 positions (11 loaded), female socket, through-hole right-angle, gold-plated mating contacts, black insulation, bulk packaging.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Guide Pin Ears |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The tin-lead post finish (50.0 µinch / 1.27 µm) is solder-compatible for wave or hand assembly.
The 0.115" (2.92 mm) post length engages through-hole pads on a typical 1.6 mm PCB; verify the board thickness and solder fillet height against the drawing. The black UL-rated housing material (not explicitly listed but typical for the series) provides flame retardance for equipment inside enclosures.
Available in bulk packaging.
The 147055-1 is a receptacle that mates with a 0.100" pitch AMPMODU Mod II pin header (male) of matching position count and row spacing. The specific header part number depends on your orientation and termination preference.
The datasheet is available from TE Connectivity's documentation portal. The base product number is 147055; the full drawing covers this variant and its mates.
