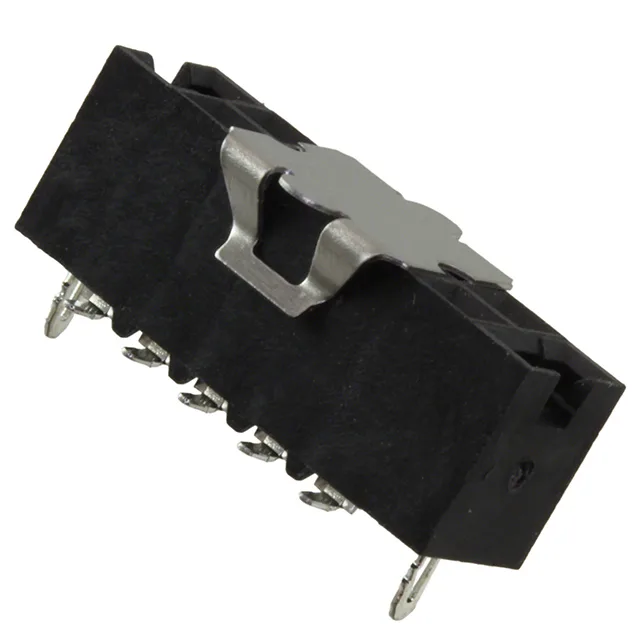

TE Connectivity AMPMODU Mod IV receptacle, order code 147102-5, 10 positions, dual row, 0.100" (2.54mm) pitch, 2 A, gold mating contacts, surface mount, solder termination, push-pull fastening.
TE AMPMODU Mod IV 147102-5 Receptacle, 10 Pos, 2.54mm
MPN147102-5
Obsolete
TE Connectivity AMPMODU Mod IV receptacle, order code 147102-5, 10 positions, dual row, 0.100" (2.54mm) pitch, 2 A, gold mating contacts, surface mount, solder termination, push-pull fastening.
$5.1600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Board Lock, Pick and Place |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What termination and mounting does the 147102-5 use?
Surface-mount solder termination with a board lock and pick-and-place feature.
