Board-to-board or cable receptacle, 14 positions
The 147105-7 is the 14-position dual-row member of the AMPMODU Mod IV receptacle line, accepting board-to-board or cable mating with a push-pull fastening style.

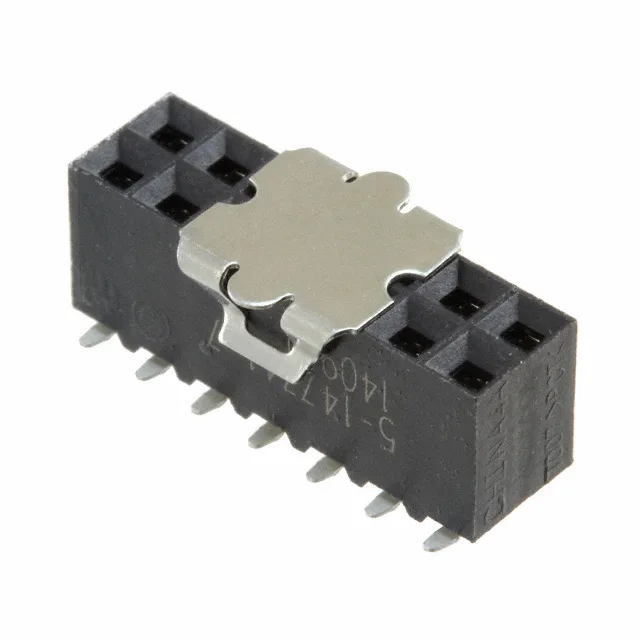

147105-7 TE AMPMODU Mod IV Receptacle 14 Pos 2.54mm
MPN147105-7
Obsolete
TE Connectivity AMP Connectors AMPMODU Mod IV receptacle, order code 147105-7, 14 positions, dual row, 0.100" (2.54 mm) pitch, 2 A, gold-plated mating contacts, surface-mount bottom or top entry, solder termination.
$4.4504Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) |
| Features | Pick and Place |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Who supplies 147105-7 and how is it quoted for volume purchases?
Sourced through independent surplus channels.
What is the closest pin-compatible alternative to 147105-7 in the AMPMODU Mod IV family?
A board spin may be required for a functional replacement.
