DDR2 SODIMM socket for memory upgrades

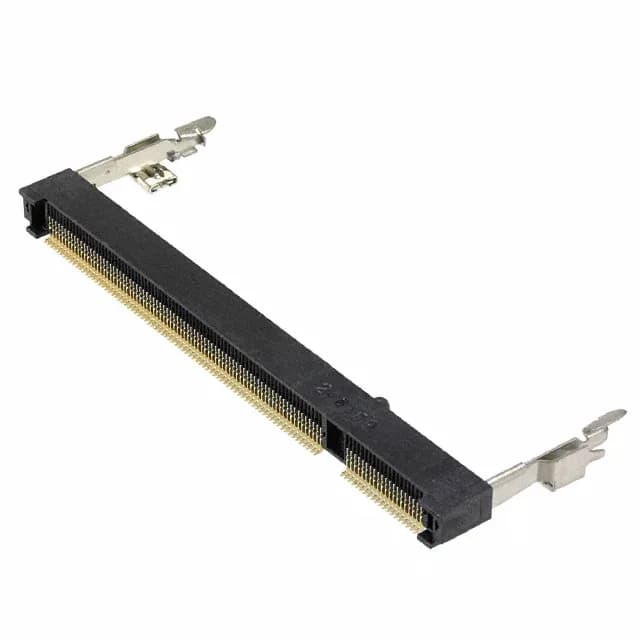

The 1473006-4: This is a 200-position DDR2 SODIMM socket from TE Connectivity, designed for right-angle surface-mount installation with a 25° insertion angle — the angle sets the memory module's entry path relative to the board, critical for enclosure clearance and DIMM retention. The gold flash contact finish provides corrosion resistance but limited mating cycle life — suitable for applications where the module is inserted once or infrequently, typical of embedded systems or single-assembly products.
Seated height and board layout fit
The seated height is 0.205" (5.20mm) above the PCB — a standard dimension for DDR2 SODIMM sockets, ensuring compatibility with common memory module thicknesses and adjacent component keep-out zones. Board guide and latches assist alignment during module insertion and provide retention against vibration — the latches are a mechanical lock, not a secondary lock, so verify the latch-to-module clearance in the enclosure.
Supplied in tray packaging.
