SODIMM socket for DDR2 memory modules

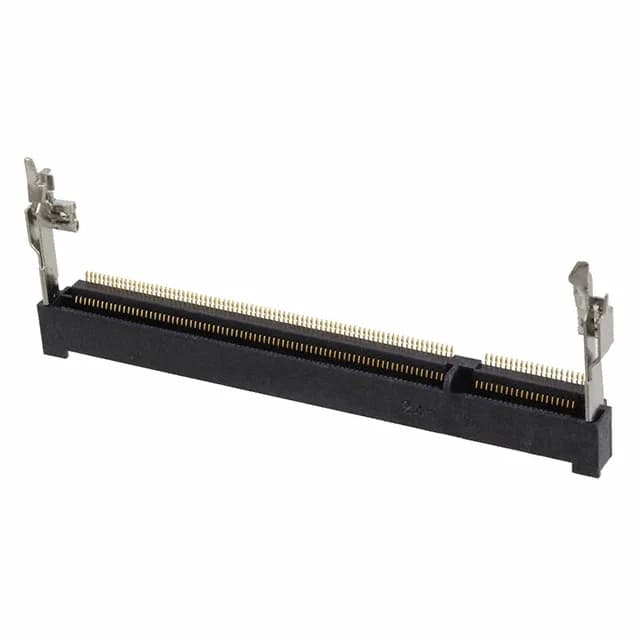

The 1473150-4 is a 200-position SODIMM socket from TE Connectivity, designed for DDR2 SDRAM memory modules. It uses a reverse surface-mount orientation with a 25° insertion angle, saving vertical space in compact enclosures.
Mechanical and electrical fit
The socket mates with standard DDR2 SODIMM modules, which have 200 gold-plated edge contacts. Board guide features align the module during insertion, and integrated latches lock it in place for vibration resistance. The gold flash contact finish provides adequate corrosion protection for typical memory slot mating cycles, though it is thinner than standard gold plating.
