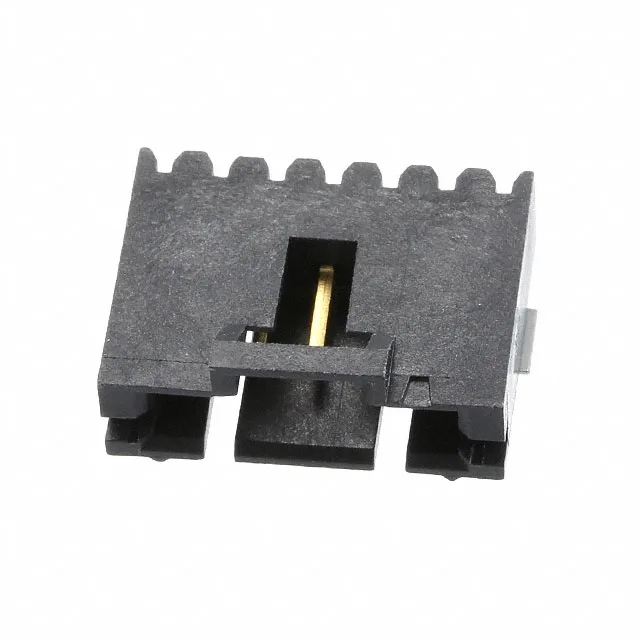

TE Connectivity AMPMODU MTE header, order code 147323-4, 5 positions, single row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, surface-mount right-angle, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Keying Slot, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 147323-4 is the 5-position member of TE's AMPMODU MTE shrouded header line, mating with AMPMODU MTE receptacle housings. Board lock, keying slot, and solder retention features secure the part during reflow and against cable strain.
The 4-wall shrouded housing with latch holder protects the mating pins and provides positive retention against vibration.
The 147323-4 mates with AMPMODU MTE receptacle housings (same series). The shrouded 4-wall design and latch holder ensure a secure connection.
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors.
