Board footprint and pitch

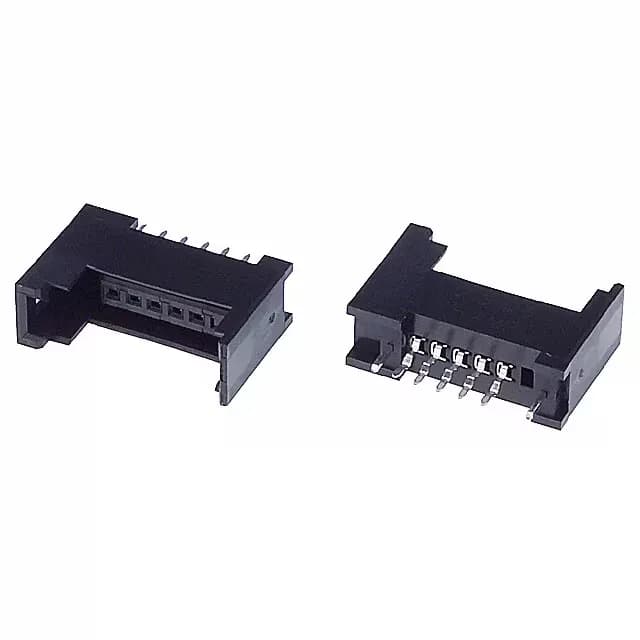

The 1473565-5: At this pitch, routing traces between pads is straightforward on a standard two-layer board. Single-row arrangement keeps the board-edge footprint narrow, useful for tight layouts where multiple headers sit side-by-side.
Voltage and current context
Rated 32 VDC maximum, this header is intended for low-voltage DC signal or power circuits, not mains or high-voltage bus applications. The voltage rating is the dielectric withstand limit between adjacent contacts and to ground. For exact derating, refer to the TE product drawing.
This is important in wire-to-board connections where cable movement or vibration could otherwise unseat the connector.
Termination and assembly
Termination options include press-fit and solder. Press-fit allows for solderless PCB assembly, reducing thermal stress and enabling rework. The through-hole mounting style provides mechanical strength against cable strain.
Operating temperature range is -30°C to 75°C, suitable for indoor commercial and industrial equipment. ROHS3 compliant, active lifecycle status.
Cross-shop with 1376775-2
The 1376775-2 is rated 3 A and 250 VAC, while the 1473565-5 is rated 32 VDC. The voltage difference is significant — the header is for low-voltage DC only; the receptacle can handle higher AC voltage.
