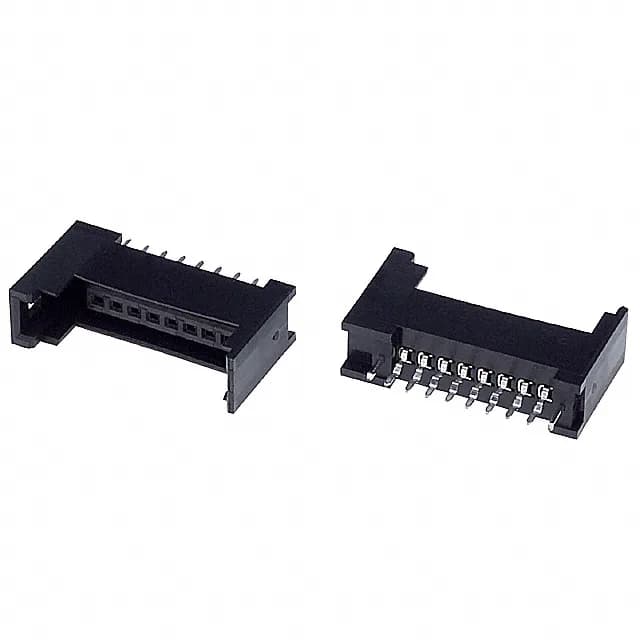

8-position RITS header with press-fit termination
The 1473565-8: Gold-plated mating contacts rated 32 VDC, through-hole mounting with press-fit and solder termination, and a latch holder for secure cable retention.
TE 1473565-8 Header, 8 Pos 2.00mm, Gold, Press-Fit
MPN1473565-8
Active
TE Connectivity AMP Connectors RITS header, order code 1473565-8, 8 positions, single row, 2.00 mm pitch, 32 VDC, gold-plated mating contacts, through-hole, press-fit and solder termination.
$4.8700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RITS |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 32VDC |
| Operating temperature | -30°C~75°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.512\" (13.00mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Product details
Frequently asked questions
Where can I buy the 1473565-8 and get a price?
The 1473565-8 is available for order.
What compliance documentation is available for the 1473565-8?
RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors.
