Board-to-cable header with press-fit option
Termination is offered as both press-fit and solder — the press-fit option avoids reflow thermal stress and is common in backplane or high-reliability assemblies where rework is a concern.

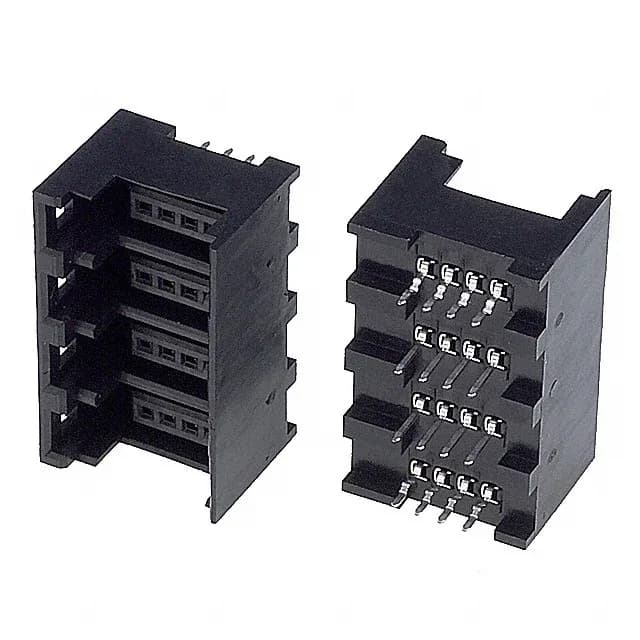

1473567-4 TE RITS 16 Pos 2.00mm Female Socket Header
MPN1473567-4
Active
TE Connectivity AMP Connectors RITS series, 1473567-4, 16-position female socket header, 0.079" (2.00 mm) pitch, through hole, press-fit and solder termination, latch holder, gold mating finish, UL94 V-0, RoHS.
$9.3400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesRITS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RITS |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 32VDC |
| Operating temperature | -30°C ~ 75°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.512\" (13.00mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 4 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.256\" (6.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Product details
Frequently asked questions
What is the difference between 1473567-4 and 1473567-3?
The primary difference is in the contact finish thickness or plating variant — check the specific datasheet for the exact delta on gold thickness or post finish. No direct cross-reference is held on this page.
