TE Connectivity AMP Connectors 1473668-1 — Connector Housings

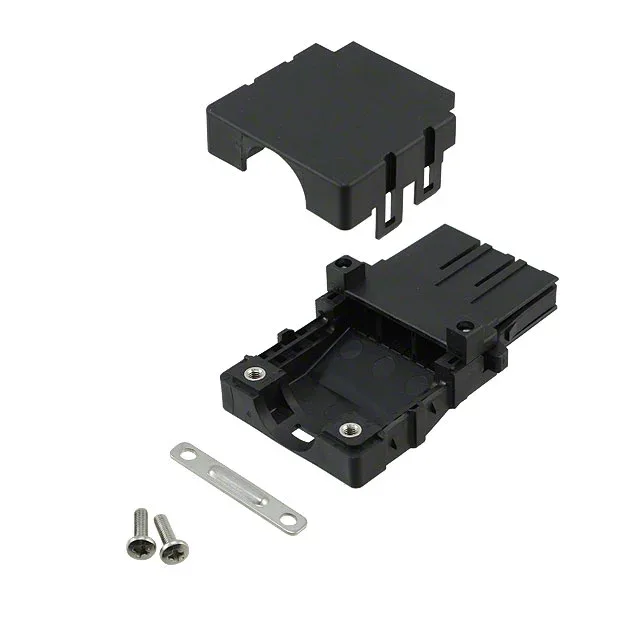

TE 1473668-1 Dynamic D-5 Receptacle Housing, 3 Pos, 10.16 mm

MPN1473668-1
Active

TE Connectivity Dynamic D-5 receptacle housing, 1473668-1, 3 positions, 1 row, 0.400" (10.16 mm) pitch, free-hanging (in-line), crimp termination, black thermoplastic housing, cable clamp, bulk pack.

$14.2700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-5
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1473668-1 specifications
ParameterValue
SeriesDynamic D-5
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.400\" (10.16mm)
PackageBulk
FeaturesCable Clamp
Rows1
Contact terminationCrimp
Positions3

Product details

Three Positions, Big Pitch – What This Housing Does

The TE Connectivity 1473668-1 is a 3-position receptacle housing from the Dynamic D-5 series, built for wire-to-wire or wire-to-board power interconnects where the 10.16 mm pitch gives you the creepage distance to handle higher voltages without forcing a massive board footprint. The housing is free-hanging (in-line), accepts crimp female sockets, and ships with a cable clamp integrated into the back — one less part to source for strain relief.

The cable clamp is already on the housing, so you skip the extra clamp-and-screw assembly step.

Frequently asked questions

Where can I buy 1473668-1 in small quantities?

No minimum order quantity is enforced, but small-quantity pricing is quoted per your request.

What contacts are compatible with TE 1473668-1 housing?

The 1473668-1 accepts Dynamic D-5 female socket crimp terminals. Contacts are not included with the housing — order the matching terminal separately for your wire gauge.
