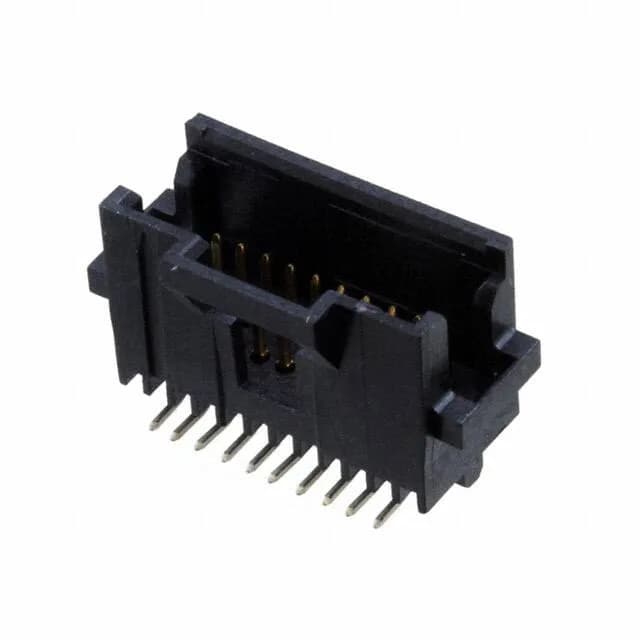

TE Connectivity AMPMODU System 50 header, order code 147377-2, 20 positions, dual row, 0.050" (1.27 mm) pitch, 30 VAC, gold-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.435\" (11.05mm) |
| Insulation material | Polyphthalamide (PPA) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 147377-2: Gold-plated mating contacts rated 30 VAC, surface-mount solder termination, and a latch holder fastening system.
Within the AMPMODU System 50 series, the 147377-2 carries 20 positions loaded in two rows.
The 147377-2 is orderable under the listed part number.
No pin-compatible alternative is recorded in the AMPMODU System 50 series for this exact position count and pitch. The 147377-2 is the 20-position member of the series.
The listed style is Board to Board or Cable.
