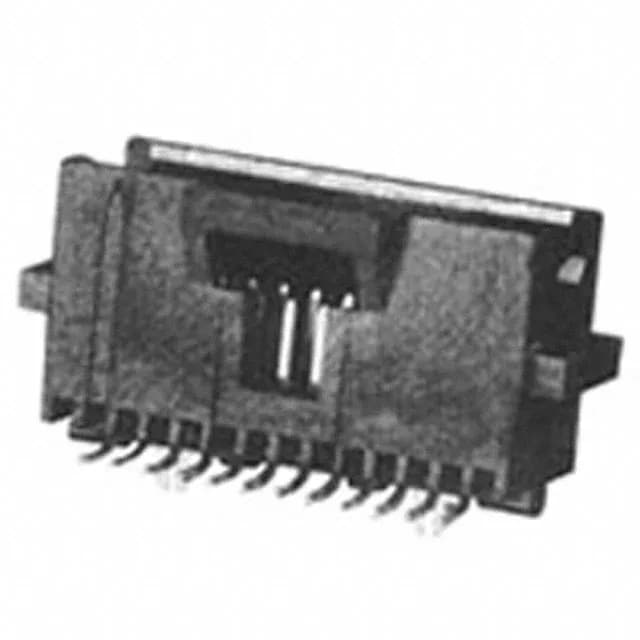

TE Connectivity AMP Connectors AMPMODU System 50 header, order code 147377-3, 30 positions, dual row, 0.050" (1.27 mm) pitch, 30VAC, gold-plated mating contacts, surface-mount, solder termination, shrouded - 4 wall, latch holder.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.435\" (11.05mm) |
| Insulation material | Polyphthalamide (PPA) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 147377-3 is the 30-position member of TE's AMPMODU System 50 header line, a dual-row board-to-board or cable interconnect on 0.050" (1.27 mm) pitch.
Within the AMPMODU System 50 series the 147377-3's 30 positions sit between the 20-position and 40-position variants — the 0.050" pitch, dual-row layout, and shrouded housing are shared across the series, so match the position count to circuit count.
The style is Board to Board or Cable, and the series is AMPMODU System 50.
