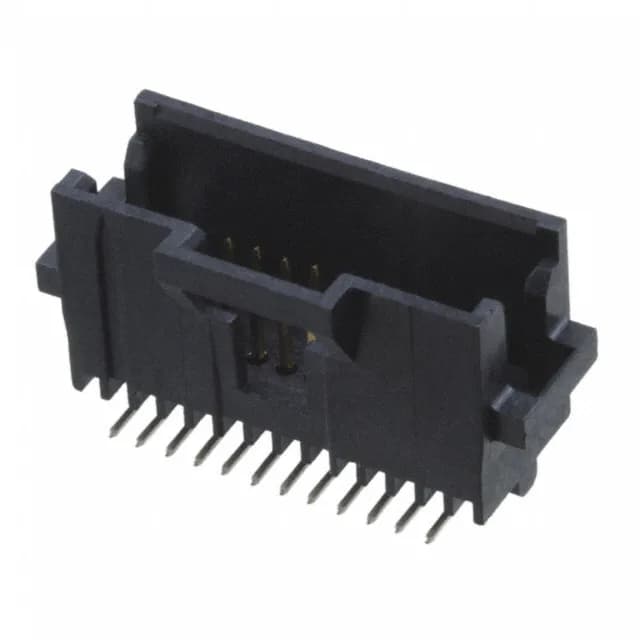

TE Connectivity AMPMODU System 50 header, 147377-9, 24 positions, 2 rows, 0.050" (1.27mm) pitch, shrouded 4-wall, gold mating finish, surface mount, solder termination, UL94 V-0, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.435\" (11.05mm) |
| Insulation material | Polyphthalamide (PPA) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 147377-9 is a 24-position, dual-row header on 0.050" (1.27mm) pitch, part of the AMPMODU System 50 series.
The surface-mount termination and pick-and-place feature support automated assembly in medium-to-high-volume production. Tape & Reel packaging is available for reel-fed placement.
The contact post finish is tin-lead, which contains lead. Verify RoHS compliance status against the specific date code and regional exemption requirements — the evidence does not list a RoHS certificate for this part number.
