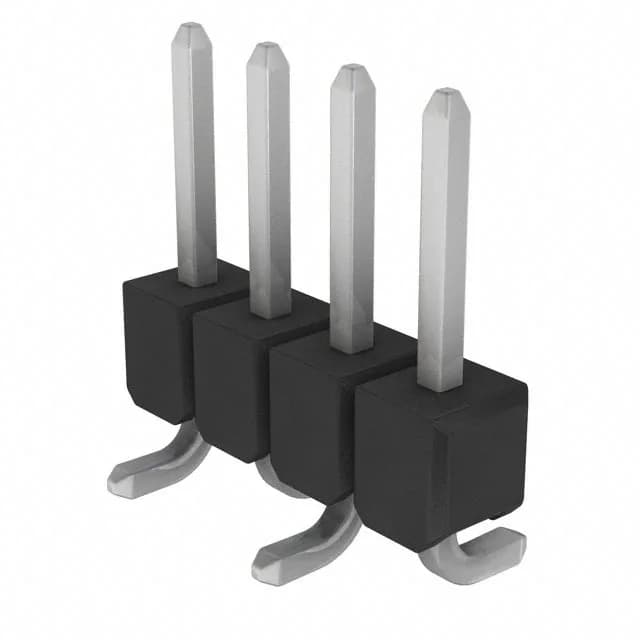

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 147548-2, 4 positions, single row, 0.100" (2.54 mm) pitch, tin-lead mating contacts, surface-mount, solder termination, bulk package.
TE 147548-2 AMPMODU Mod II Header, 4-Pos, 2.54mm
MPN147548-2
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 147548-2, 4 positions, single row, 0.100" (2.54 mm) pitch, tin-lead mating contacts, surface-mount, solder termination, bulk package.
$1.5604Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Pick and Place |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Where can I buy 147548-2 and how do I get a price?
The 147548-2 is available to order. Submit an RFQ through the distributor listing for current pricing and lead time.
