Board-to-board signal interconnect — 4 positions, right-angle SMT
Mating and footprint — what it connects to
The insulation height of 0.137" (3.47 mm) gives clearance for the mating header's shroud.

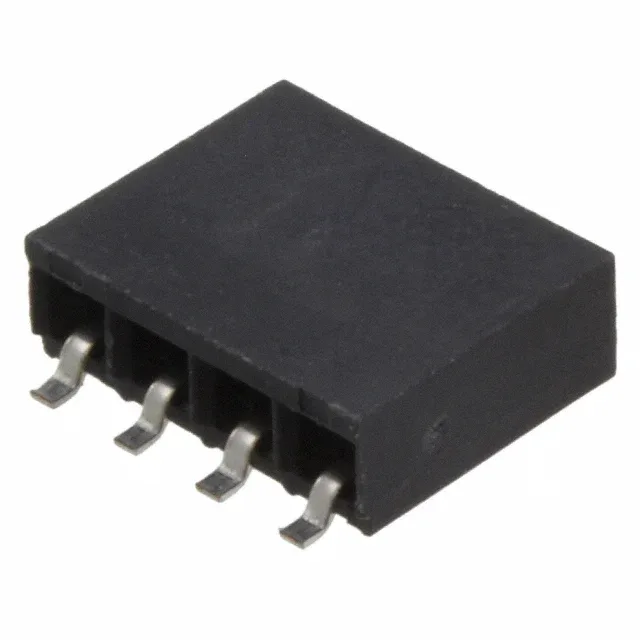

147721-3 TE Connectivity AMPMODU Mod II 4-Pin Receptacle
MPN147721-3
Active
TE Connectivity AMPMODU Mod II receptacle, 4 circuits, 0.100" (2.54 mm) pitch, right-angle surface-mount, gold-plated phosphor bronze contacts, rated 2 A, -55 to 125 °C.
$0.6846Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.137\" (3.47mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Is 147721-3 RoHS compliant?
Yes, it is ROHS3 compliant per the manufacturer's listing.
What is the exact pinout and dimensions of 147721-3?
This is a 4-position, single-row receptacle with all positions loaded. The pitch is 0.100" (2.54 mm) center-to-center. For full dimensional drawings, refer to the TE product drawing (base number 147721).
