TE Connectivity AMP Connectors 1534077-7 — Circular Connectors

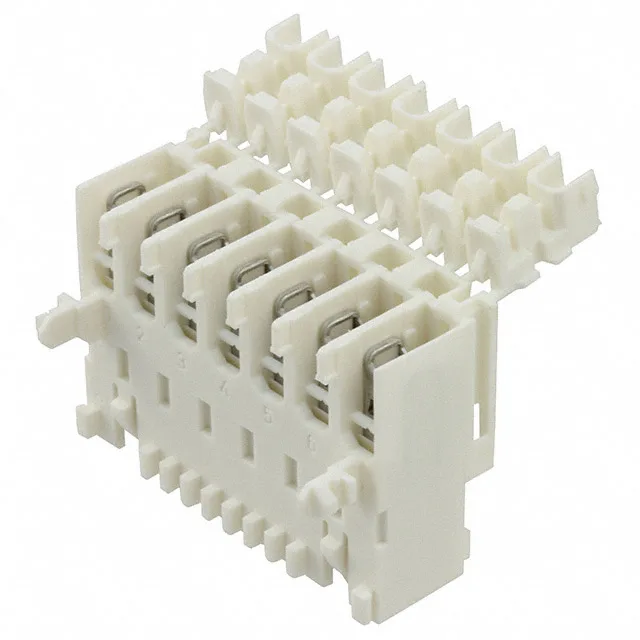

TE Connectivity 1534077-7 Mark II Plug, 7 Pos, 5.00mm Pitch

MPN1534077-7
Obsolete

TE Connectivity Mark II plug, 1534077-7, 7 positions, 1 row, 0.197" (5.00mm) pitch, IDC termination, locking ramp, free hanging (in-line), natural color, bulk.

$1.1600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1534077-7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1534077-7 specifications
ParameterValue
SeriesMark II
Wire typeDiscrete
TypeTab
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLocking Ramp
Cable terminationIDC
ColorNatural
Pitch0.197\" (5.00mm)
PackageBulk
Rows1
Positions7

Product details

7-position Mark II plug with IDC termination

The TE Connectivity 1534077-7 is a 7-circuit Mark II series plug connector built for discrete-wire IDC termination. The free-hanging (in-line) body means it terminates a cable end and mates to a panel-mount or another in-line half, not to a board directly. Natural colour housing, bulk packaged.

Obsolete — sourcing through independent distribution

No official successor order code is recorded for this exact part.

IDC termination and locking ramp — harness floor fit

On the harness floor that means no separate terminal inventory and no applicator changeover, but the wire must be discrete (not ribbon) and the insulation diameter must match the slot. The locking ramp engages with a positive click — audible feedback that the plug is fully seated in its mating header. No secondary TPA or retainer is listed; the ramp alone carries the retention.

Frequently asked questions

What is a replacement for 1534077-7?

No official successor order code is recorded for the 1534077-7. A pin-compatible replacement would need to match the 7-position, single-row, 0.197" (5.00mm) pitch, IDC termination, and locking ramp. Without an official cross-reference, a parametric search against those specs is the practical route. Sourcing through the surplus channel for the original part remains an option.

What is the pitch of 1534077-7?

The pitch is 0.197" (5.00mm), single row. That is the centre-to-centre spacing between adjacent contact positions.

Does 1534077-7 have a locking feature?

Yes, it has a locking ramp fastening type. The ramp engages with the mating header to provide vibration-resistant retention once the plug is fully seated.
