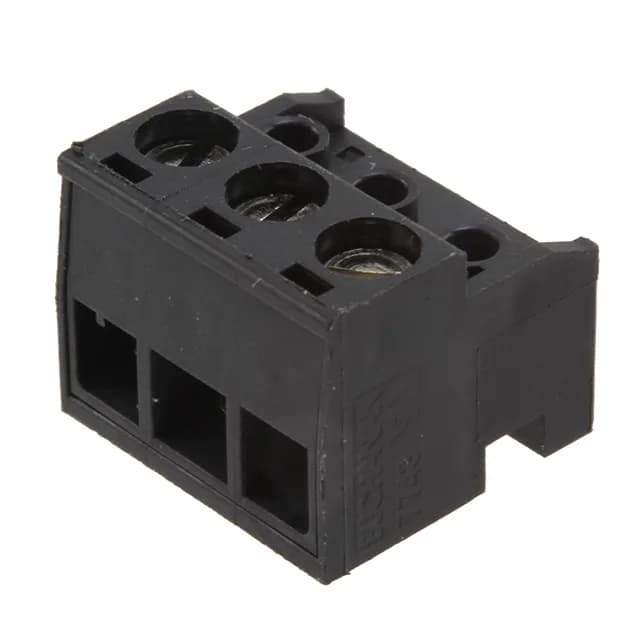

1546018-3 TE Connectivity Buchanan Plug, 5.00mm, 3 Pos, 12 A

MPN1546018-3
Active

TE Connectivity AMP Connectors, Buchanan series, 3-position plug for unshrouded header, 0.197" (5.00mm) pitch, 12 A, 300 V, rising cage clamp termination, black housing, free hanging (in-line), 90° wire entry.

$1.1529Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1546018-3 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1546018-3 key specifications
ParameterValue
TypePlug for Unshrouded Header
SeriesBuchanan
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL12 A
Plug wire entry90°
Wire strip length4-6mm
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorBlack
Contact materialPhosphor Bronze

All specifications

1546018-3 additional specifications
ParameterValue
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.453\" (11.50mm)
Material flammability ratingUL94 V-0
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesInterlocking (Side)
Screw sizeM3
Torque - screw0.68 Nm (6 Lb-In)
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions3
Positions per level3
Contact mating finishTin

Product details

Current and Voltage Ceiling for Control Circuits

The 1546018-3: Rated 12 A at 300 V (UL) — this is the continuous current per circuit at the rated voltage.

Side Interlock for Multi-Pole Ganging

The interlocking (Side) feature lets you snap multiple 3-position plugs together side-by-side to form a larger multi-pole connector block — no separate hardware needed. This is useful when a terminal block header has more than 3 positions and you want to populate it with individual plug modules rather than a single wide plug.

Frequently asked questions

What is the pitch of 1546018-3?

The pitch is 0.197" (5.00mm). This is the centre-to-centre spacing between adjacent pin positions and matches standard Buchanan unshrouded headers.

Does 1546018-3 have an interlocking feature?

Yes, it has interlocking (Side) — you can snap multiple plugs together side-by-side to form a multi-pole block.

What is the torque specification for the screw?

The screw torque is 0.68 Nm (6 Lb-In). Use a torque screwdriver to avoid over-tightening the rising cage clamp.
