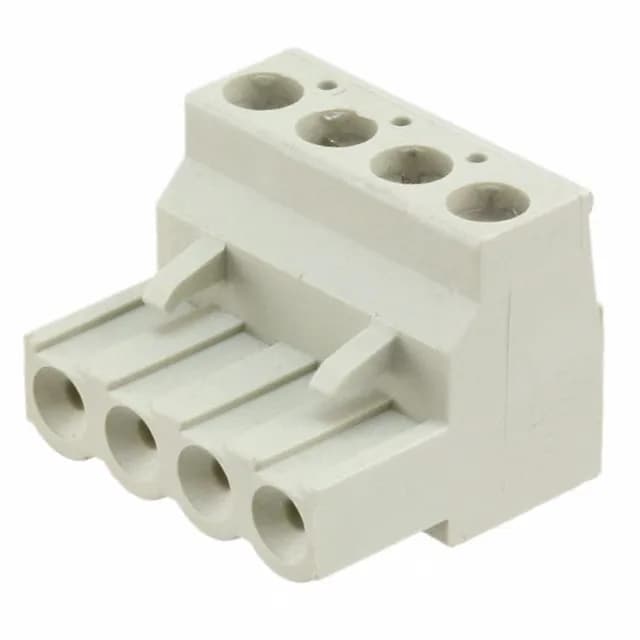

The 1546108-4: The screw clamp accepts 12-30 AWG (0.05-3 mm²) solid or stranded wire. A 6-7.5 mm strip length gives the cage enough conductor to bite without bottoming out.
Termination and Housing Details
Rising cage clamp termination — the screw pushes a pressure plate down onto the conductor, not the screw tip directly. This avoids strand damage and gives a gas-tight connection that holds up to thermal cycling. Gray polyamide (PA66) housing rated UL94 V-0. Retention latches on the non-wire side lock the plug into the mating header against vibration.
