TE Connectivity AMP Connectors Termi-Blok, Buchanan header, order code 1546109-3, 3 positions, single level, 0.200" (5.08 mm) pitch, 15 A, 300 V, tin-plated mating contacts, through-hole right-angle, solder termination.

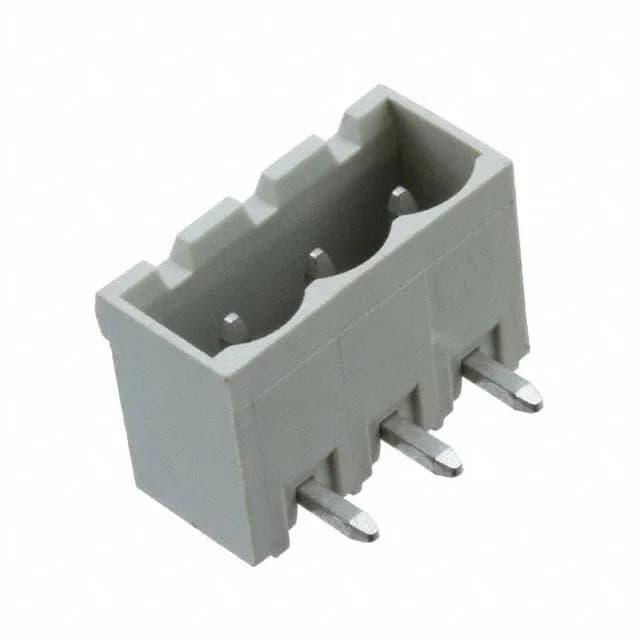

1546109-3 TE Buchanan Termi-Blok Header, 3 Pos, 5.08mm
MPN1546109-3
Obsolete
TE Connectivity AMP Connectors Termi-Blok, Buchanan header, order code 1546109-3, 3 positions, single level, 0.200" (5.08 mm) pitch, 15 A, 300 V, tin-plated mating contacts, through-hole right-angle, solder termination.
$2.7100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Termi-Blok, Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C~110°C |
| Color | Gray |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.329\" (8.36mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What compliance documentation does TE Connectivity AMP Connectors provide for 1546109-3?
The housing material is polyamide (PA66) rated UL94 V-0. RoHS/REACH compliance documentation is available from the manufacturer.
