Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C~110°C |
| Color | Gray |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
Sourcing this connector

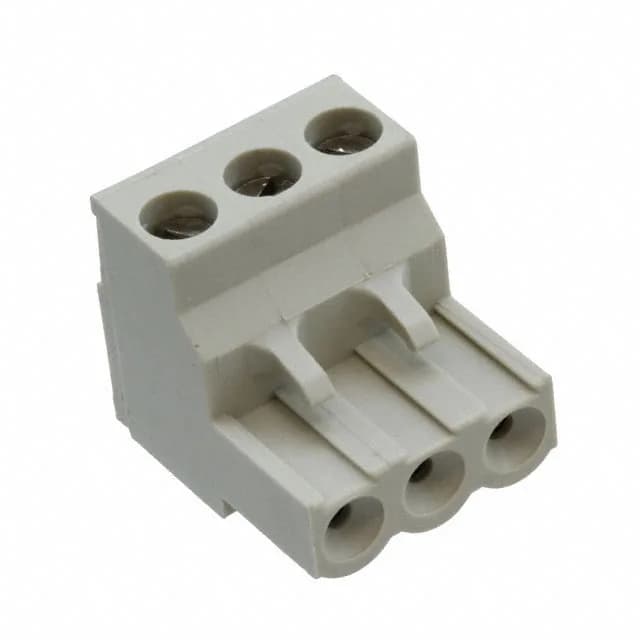

TE Connectivity AMP Connectors 1546208-3 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against TE Connectivity AMP Connectors and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
