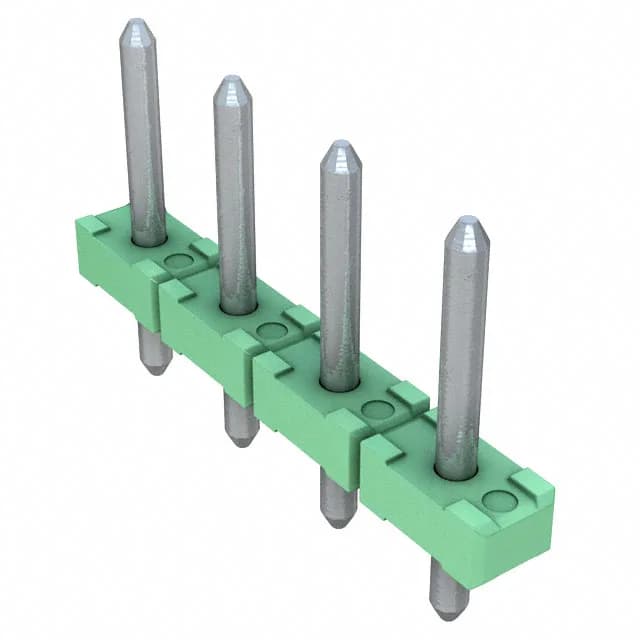

TE Connectivity AMP Connectors Buchanan header, order code 1546214-4, 4 positions, single level, 0.197" (5.00mm) pitch, tin-plated mating finish, through-hole, vertical orientation, solder termination.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Series | Buchanan |
| Mounting | Through Hole |
| Operating temperature | -40°C ~ 110°C |
| Color | Gray |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.079\" (2.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 1546214-4 is the 4-circuit member of TE's Buchanan series — a single-level unshrouded pin header with a 0.197" (5.00mm) pitch. Tin-plated mating finish on copper alloy contacts, through-hole vertical mounting, solder termination. Housing is gray polyamide 6/6 rated UL94 V-0.
Available through independent surplus and aftermarket distributors.
The 1546214-4 is available through independent surplus channels. Request a quote for current availability and pricing.
