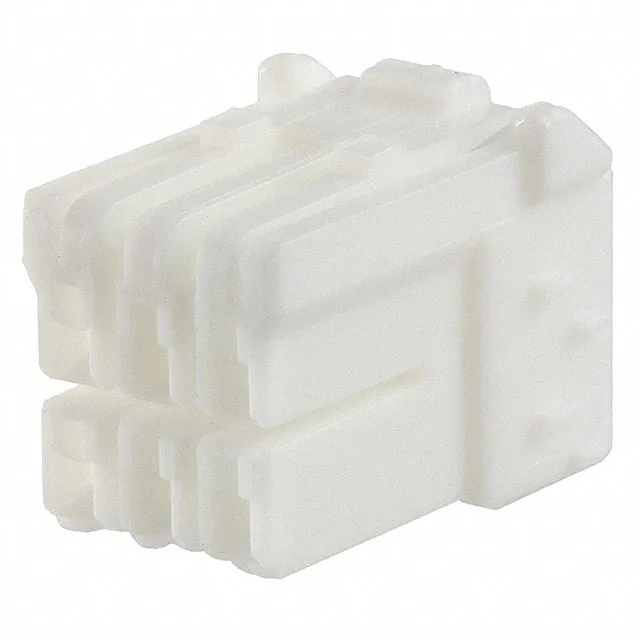

6-Position Grace Inertia GIC Receptacle Housing — Contacts Ordered Separately
The TE Connectivity 1565084-1 is a 6-circuit, dual-row receptacle housing from the Grace Inertia GIC series, on a 3.50mm pitch with a 4.80mm row spacing. This is the housing only — the female socket crimp terminals are ordered separately, so the BOM needs a line item for the matching contacts (TE's standard GIC crimp terminal series) plus the wire seals if the application requires environmental sealing. The latch holder fastening gives a positive lock when mated with the corresponding header, making this housing suited for harness assemblies in automotive body electronics, industrial control cabinets, and appliance wiring where vibration could otherwise work a latchless connector loose.
Pitch, Positions, and the Mating Half
The 6 circuits in 2 rows (3 per row) are typical for a sensor or actuator harness where a single connector carries power, ground, and a signal pair. The mating half is a Grace Inertia GIC header with the same 3.50mm pitch and latch-compatible profile; the latch holder on this receptacle engages the header's locking ramp for a vibration-resistant mate.
