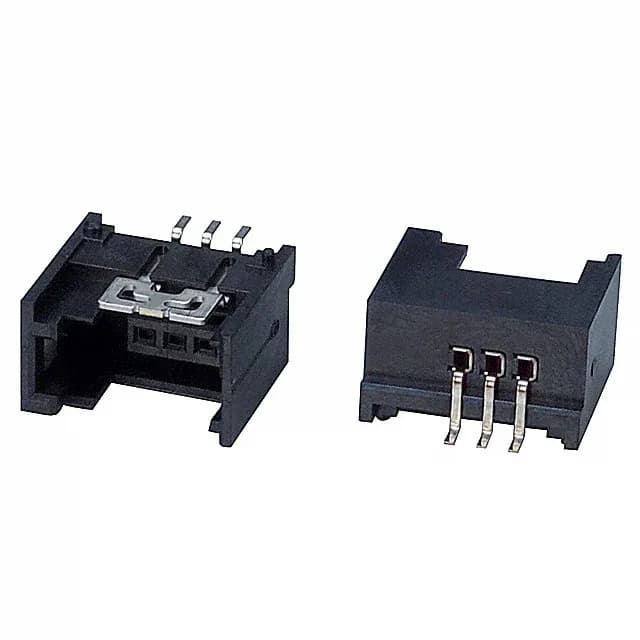

TE Connectivity AMP Connectors RITS series, 1565994-3, female socket header, 3 positions, 2.00 mm pitch, gold-plated mating contacts, surface-mount right-angle termination, latch holder fastening, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | RITS |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 32VDC |
| Operating temperature | -30°C ~ 75°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.303\" (7.70mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Rated at 32 VDC, this header is intended for low-voltage DC signal or power circuits, not mains or high-voltage applications. The -30°C to 75°C operating range suits indoor or climate-controlled environments.
Surface-mount, right-angle termination with a board guide feature aids alignment during pick-and-place assembly. Insulation height is 0.303" (7.70 mm).
The 1565994-3 is a female socket header. Confirm the mating half part number with the TE RITS series catalog.
Yes, it is ROHS3 compliant per the listing.
