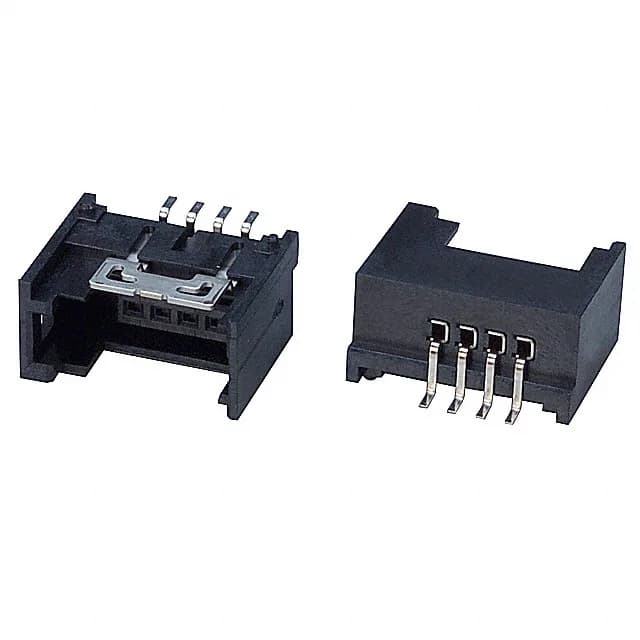

TE Connectivity AMP RITS series, Board to Cable/Wire, 4 positions, 2.00mm pitch, Gold mating, SMT Right Angle, Latch Holder, UL94 V-0, -30°C to 75°C
| Parameter | Value |
|---|---|
| Series | RITS |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 32VDC |
| Operating temperature | -30°C ~ 75°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.303\" (7.70mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Operating temperature spans -30°C to 75°C, so keep it inside an enclosure or in mild ambient conditions — not for under-hood or outdoor washdown duty.
At 2.00mm pitch with 4 positions, this header fits a compact board footprint. Insulation height is 0.303" (7.70mm) — factor that into your component keep-out zone.
Packaging is Tape & Reel (TR) with Cut Tape (CT) option, suitable for pick-and-place assembly.
The mating pitch is 0.079" (2.00mm), single row, with all 4 positions loaded.
A close functional alternative is 1376775-2 from the same series, which is a 5-position receptacle with the same 2.00mm pitch, gold mating finish, and UL94 V-0 rating. However, 1376775-2 is packaged in Box rather than Tape & Reel, and has a different position count — verify your BOM position requirement before substituting.
