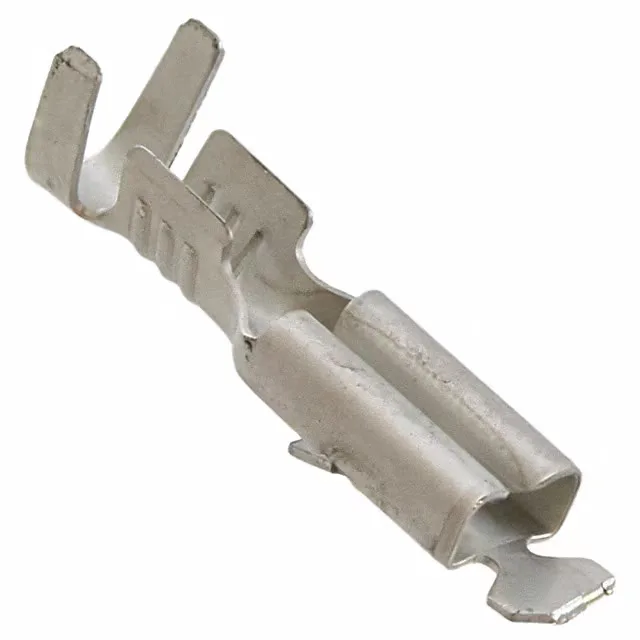

TE Connectivity AMP Connectors 160655-4
MPN160655-4
Active
CONN QC RCPT 15.5-20AWG 0.110
$0.18Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 15.5-20 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.248\" (6.30mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.551\" (14.00mm) |
| Insulation diameter | 0.079\" ~ 0.118\" (2.00mm ~ 3.00mm) |
