TE Connectivity AMP Connectors 1612507-3 — Pin Headers, Sockets & Housings

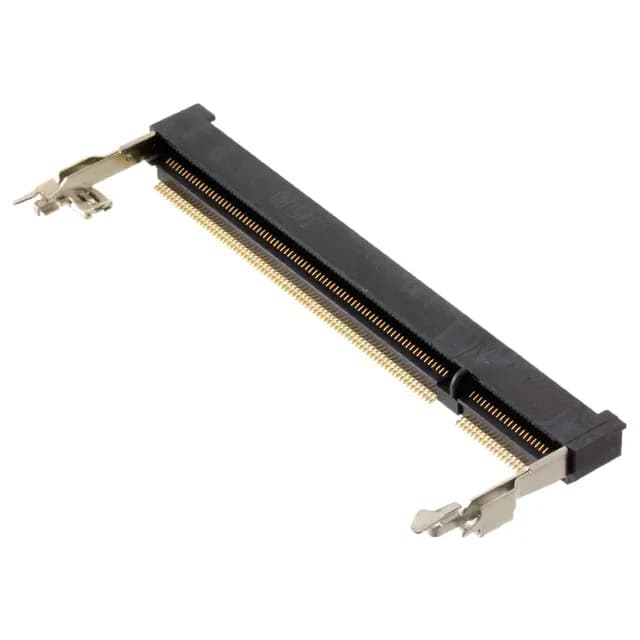

1612507-3 TE SODIMM Socket 200POS R/A SMT 0.205" Height

MPN1612507-3
Active

TE Connectivity AMP Connectors 1612507-3, SODIMM socket, 200 positions, right-angle surface mount, 0.205" (5.20mm) seated height, gold flash contacts, DDR SDRAM memory module interface.

$20.5000Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1612507-3 specifications
ParameterValue
Memory typeDDR SDRAM
MountingSurface Mount
Mounting featureNormal, Standard - Top
Connector typeSODIMM
Height0.205\" (5.20mm)
PackageTray
FeaturesBoard Guide, Latches
Card thickness0.039\" (1.00mm)
Contact finishGold
Insertion angle25° Angle
Positions200
Contact finish thicknessFlash

Product details

0.205" (5.20mm) SODIMM Socket for DDR Memory Modules

Its right-angle SMT orientation and 0.205" (5.20mm) seated height make it a direct fit for laptop, mini-PC, and embedded system mainboards where z-height is tight. The connector includes board guides and latches for secure module retention during shipping and vibration.

Gold Flash Contacts and DDR Compatibility

Contacts are finished with gold flash over nickel — suitable for the mating cycle life of a SODIMM slot in consumer and industrial memory applications. The connector is specified for DDR SDRAM memory type; confirm your module's keying and pinout against the DDR generation standard.

Frequently asked questions

Is 1612507-3 compatible with DDR4 SODIMM?

The 1612507-3 is specified for DDR SDRAM memory type. DDR4 SODIMM modules use a 260-pin edge connector and a different keying notch position than the 200-pin DDR3/DDR2 standard. This 200-position socket will not accept a DDR4 module. It is intended for DDR3 or earlier generation SODIMM modules.

What is the height and mounting footprint of TE 1612507-3?

The seated height is 0.205" (5.20mm). The connector is a right-angle surface-mount design with a mounting feature described as normal, standard - top. Board guides and latches are integrated. For exact pad layout and keep-out dimensions, refer to the product drawing.
