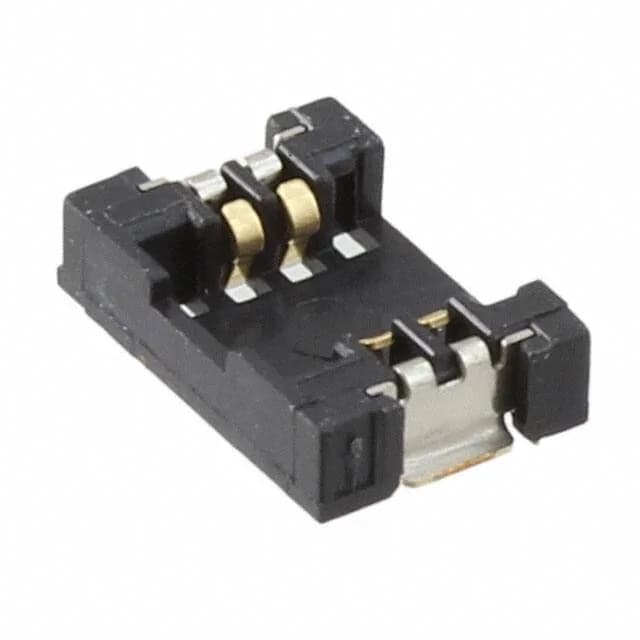

TE Connectivity AMP Connectors Micro SLP receptacle, order code 1612534-1, 2 positions, single row, 0.80 mm pitch, 0.5 A, 30 V, gold-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | Micro SLP |
| Type | Outer Shroud Contact |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Voltage rating | 30V |
| Current rating | 0.5A |
| Operating temperature | -25°C~85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.057\" (1.45mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | General Purpose |
| Rows | 1 |
| Pitch | 0.031\" (0.80mm) |
| Positions | 2 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 1.97µin (0.050µm) |
| Contact finish thickness - mating | 12.0µin (0.30µm) |
The 1612534-1 is the 2-position member of TE's Micro SLP receptacle line, a board-to-wire connector with a 0.80 mm pitch. It carries gold-plated mating contacts rated 0.5 A at 30 V, mounts surface-mount with solder retention, and uses a detent lock for secure mating.
No same-series alternative is listed — the Micro SLP line includes only this 2-position receptacle at 0.80 mm pitch. A different position count or pitch would not be pin-compatible.
