200-Position DDR2 SODIMM Socket with 25° Angle

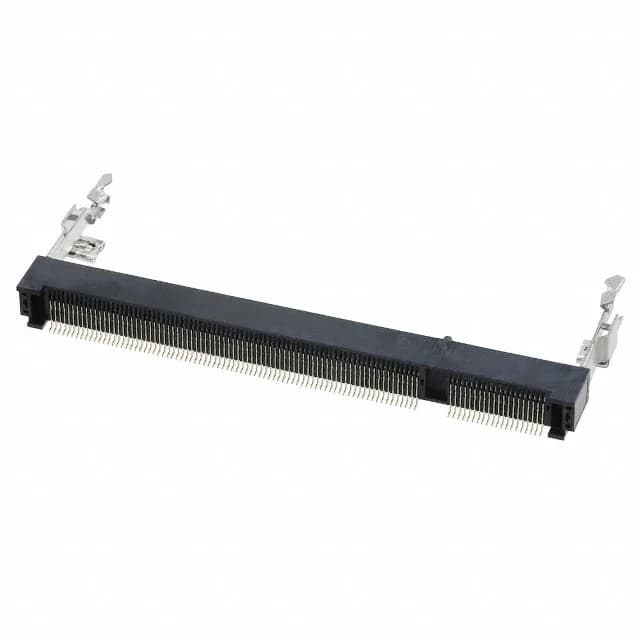

The 1612773-4 is a 200-position DDR2 SDRAM SODIMM socket from TE Connectivity AMP Connectors, designed for right-angle surface mount with a 25° insertion angle — the card sits at that angle to the board, which matters for chassis clearance and airflow routing.
Contact Finish and Retention Features
Integrated board guide and latches align the module during insertion and lock it in place against vibration; the black housing is the standard color for this series.
Comparison with the 260-Position DDR4 Sibling
The closest peer in the same form factor is the 2309410-3, a 260-position DDR4 SODIMM socket with a 0.205" (5.20mm) height versus the 1612773-4's 0.256" (6.50mm) height. The 2309410-3 accepts a thicker card (0.047" / 1.20mm vs 0.039" / 1.00mm) and uses 10.0µin gold plating (vs contact finish thickness).
