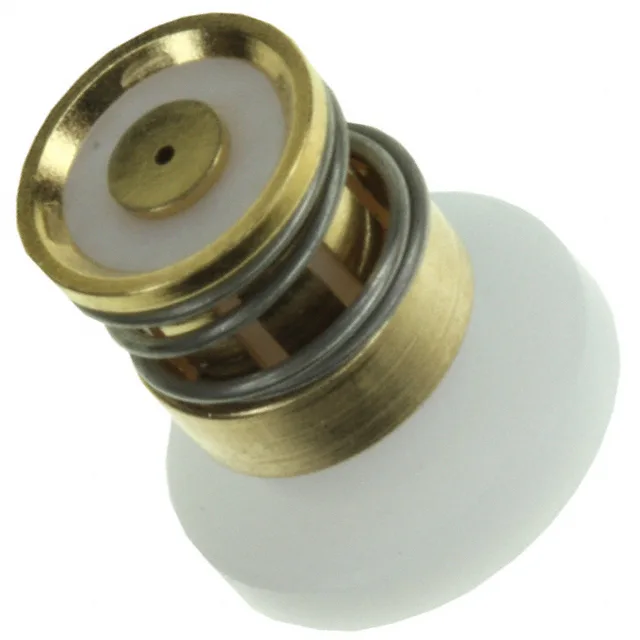

1658260-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 1658260-1 Coaxial Compression Stacker

MPN1658260-1
Obsolete

TE Connectivity 1658260-1, Non-Gendered Stacker coaxial compression connector, 1 port, 50 Ohms impedance, 6 GHz max frequency, 0.2 dB insertion loss, 125 V rating, surface mount, compression termination, gold body finish.

$8.3300Ref. price · indicative, final on quote
1658260-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1658260-1 Technical Specifications
ParameterValue
Mounting typeSurface Mount
Connector typeNon-Gendered Stacker
Voltage rating125 V
Frequency - max6 GHz
Operating temperature-40°C ~ 125°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Impedance50 Ohms
Body finishGold
Mating cycles25
Insertion loss0.2dB
Number of ports1
Shield terminationSolder
Contact terminationCompression
Center contact platingGold

Product details

Coaxial Compression Stacker for Board-to-Board RF Links

The TE Connectivity 1658260-1 is a Non-Gendered Stacker coaxial compression connector — a single-port, surface-mount interconnect built for board-to-board RF signal paths. The compression termination and gold-plated brass body make it a field-mateable option where soldering a semi-rigid coax is impractical. With only 25 mating cycles rated, this connector is intended for limited-reconnect installations — think a one-time board stack or a test fixture that stays assembled.

What the 50 Ohm and 6 GHz Ratings Mean for the RF Path

The 0.2 dB insertion loss at 6 GHz is typical for a short compression-style interconnect; the loss is dominated by the contact interface, not the body.

Frequently asked questions

Is the 1658260-1 obsolete?

Yes, the TE Connectivity 1658260-1 is listed as Obsolete. There is no documented direct replacement from TE for this specific non-gendered compression stacker.

What is the impedance of the 1658260-1?

The 1658260-1 is a 50 Ohm coaxial compression connector, rated to 6 GHz with 0.2 dB insertion loss and a 125 V voltage rating.
