TE Connectivity AMP Connectors 1658622-7

TE AMP-Latch 1658622-7, 30-Position IDC Receptacle

MPN 1658622-7
Active

TE Connectivity AMP-Latch receptacle, 30 positions, 2 rows, 0.100" (2.54mm) pitch, IDC termination for 26-28 AWG ribbon cable, forked contacts with 30.0µin gold or gold-palladium plating, free hanging (in-line) mount, black, bulk.

$3.4400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1658622-7 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeForked
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold or Gold-Palladium
Rows2
Positions30
Contact finish thickness30.0µin (0.76µm)

Product details

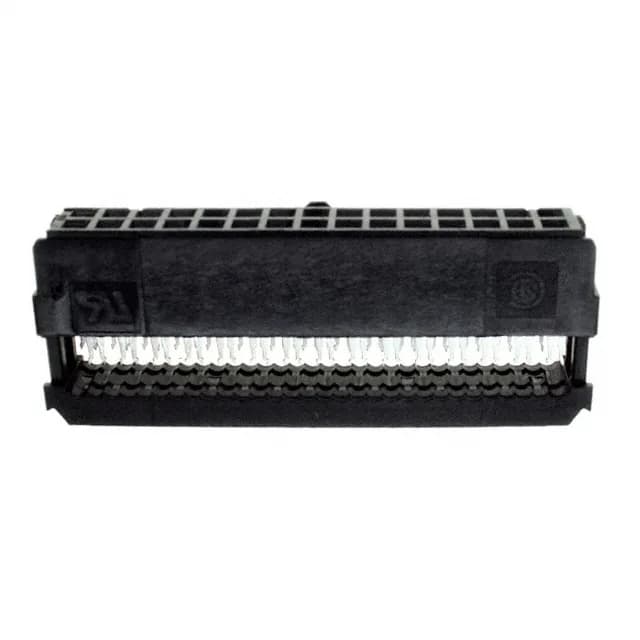

The TE Connectivity AMP-Latch 1658622-7 is a 30-position, 2-row receptacle for mass-termination ribbon cable. It uses forked contacts — a design that mates with the square pins of a standard AMP-Latch header — and terminates 26-28 AWG ribbon cable via an IDC slot.

Gold Contact Finish — Why 30.0µin Matters for This Receptacle

The forked contact geometry wipes against the header pin on each mate, and the gold thickness ensures the wipe doesn't expose the base metal.

The 1658622-7 terminates 26-28 AWG ribbon cable through an IDC slot — no stripping, no crimping, no solder. The free-hanging (in-line) mount means this receptacle sits at the end of the cable, not on a board. The polarizing key and feed-through feature prevent misalignment during assembly: the key aligns the cable to the contact pattern, and the feed-through lets the cable pass straight through the connector body for daisy-chain routing.

Where the 1658622-7 Fits in the AMP-Latch Line

The 1658622-7 sits at 30 positions — a common count for a 16-bit data bus plus control lines, or a 30-conductor ribbon cable in a D-sub breakout.

For volume or scheduled releases, the RFQ confirms lead time against the BOM quantity.

MPN
1658622-7
