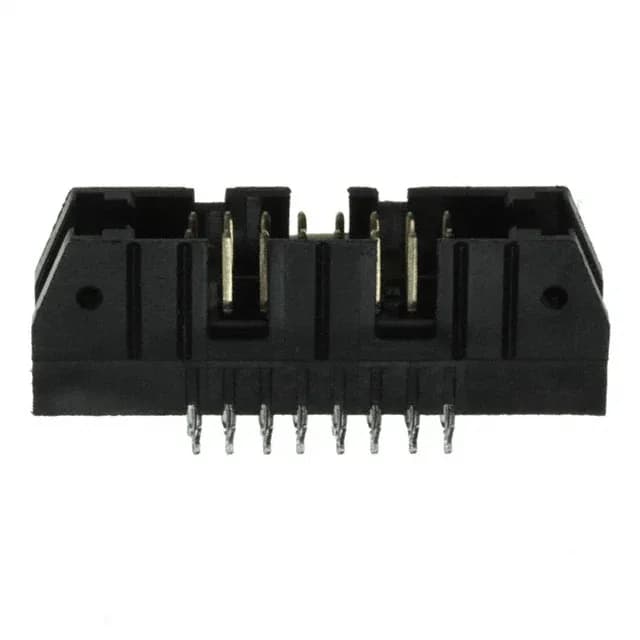

TE Connectivity AMP-Latch, Header, 16 Positions, 0.100" (2.54mm) Pitch, 2 Row, Shrouded - 4 Wall, Through Hole, Press-Fit/Solder Termination, 1A per Contact, -65°C ~ 105°C, UL94 V-0, Black, Bulk
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.174\" (4.42mm) |
| Overall contact length | 0.703\" (17.86mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
A keying slot and mounting flange are built in — the slot ensures the cable plug can only be inserted one way, and the flange gives a mechanical anchor to the board through the through-hole solder joints.
The part is listed for both press-fit and solder termination — the press-fit option suits a solderless backplane assembly where rework matters; the solder tail works in a standard wave-solder process.
The pitch is 0.100" (2.54mm) on the mating side, with the same 0.100" row spacing.
Yes, it is ROHS3 compliant.
