TE Connectivity AMP Connectors 170003-5 — Wire-to-Wire Connectors

TE 170003-5 Shur-Plug Crimp Terminal, 14-20 AWG

MPN170003-5
Active

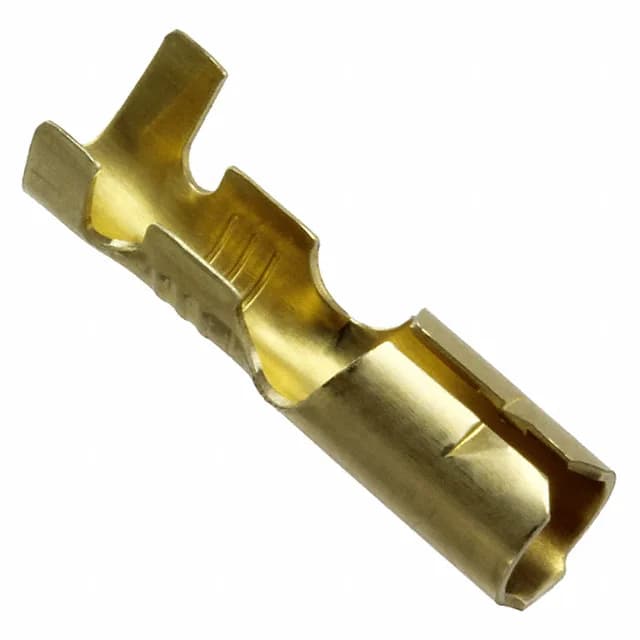

TE Connectivity AMP Connectors Shur-Plug terminal, order code 170003-5, female receptacle (socket), non-insulated, 14-20 AWG, tin-plated brass, 0.156" (3.96mm) barrel diameter, 0.252" (6.40mm) barrel length, crimp termination.

$0.2900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 170003-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesShur-Plug
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

170003-5 specifications
ParameterValue
SeriesShur-Plug
Terminal typeFemale, Receptacle (Socket)
Wire gauge14-20 AWG
Contact materialBrass
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
TerminationCrimp
Contact finishTin
Length - barrel0.252\" (6.40mm)
Length - overall0.693\" (17.60mm)
Diameter - barrel0.156\" (3.96mm)
Insulation diameter0.098\" ~ 0.150\" (2.50mm ~ 3.81mm)

Product details

Shur-Plug receptacle terminal for 14-20 AWG

The 170003-5 is the 0.156" barrel-diameter member of TE Connectivity's Shur-Plug non-insulated receptacle terminal line, accepting 14-20 AWG wire. Tin-plated brass construction with a 0.252" barrel length and 0.693" overall length; crimp termination suits field and harness assembly.

Barrel-length selection in the Shur-Plug series

Within the Shur-Plug 170003 base series the 170003-5's 0.252" barrel sits shorter than the 0.343" barrel of the 170002-5 — both accept the same 14-20 AWG range and share the 0.156" barrel diameter and tin plating, so the barrel-length choice follows the crimp depth the tooling or application requires.

Frequently asked questions

What wire gauge does 170003-5 accept?

The terminal accepts 14-20 AWG wire per the spec table.

Does 170003-5 drop into a panel specified for 170003-4?

The 170003-5 and 170003-4 share the same 0.156" barrel diameter, 0.252" barrel length, 14-20 AWG range, and tin-plated brass construction — they are functionally identical in crimp dimensions and wire range.
