Board-to-wire header with shrouded 4-wall housing
The 1717394-2: The dual-row header mounts surface-mount with solder termination, carries tin-plated contacts rated 12 VDC, and operates from -30°C to 105°C in a UL94 V-0 rated housing.

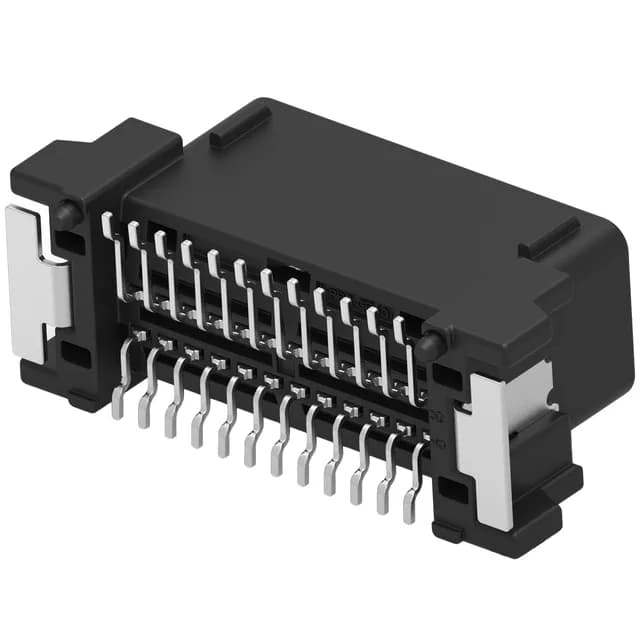

TE 1717394-2 Header, 24 Pos, 2.20mm, SMT, Shrouded
MPN1717394-2
Active
TE Connectivity AMP Connectors header, order code 1717394-2, 24 positions, dual row, 2.20 mm pitch, 12 VDC, tin-plated mating contacts, surface-mount, solder termination, shrouded 4-wall.
$2.9300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 12VDC |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.669\" (17.00mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.087\" (2.20mm) |
| Positions | 24 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.224\" (5.70mm) |
Product details
Frequently asked questions
What compliance documentation is available for the 1717394-2?
RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors; consult the product drawing or contact the supplier for the current compliance certificates.
