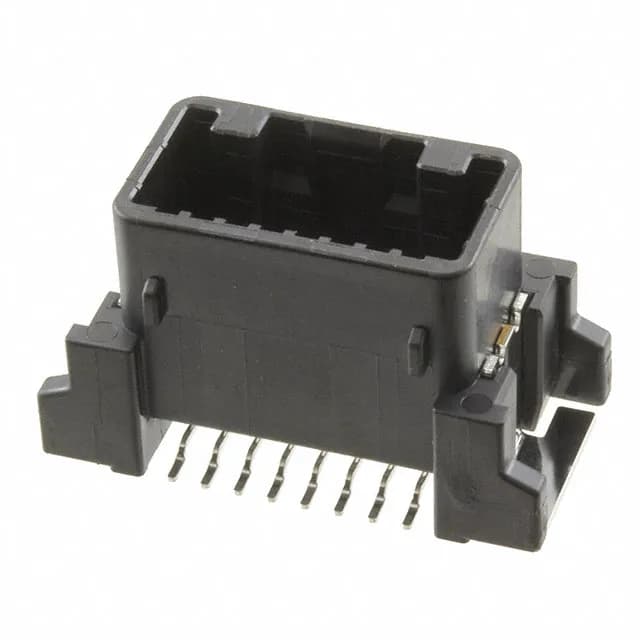

TE Connectivity AMP Connectors 1717396-2
MPN1717396-2
Active
$3.9952Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 12VDC |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.787\" (19.99mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.087\" (2.20mm) |
| Positions | 16 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.224\" (5.70mm) |
