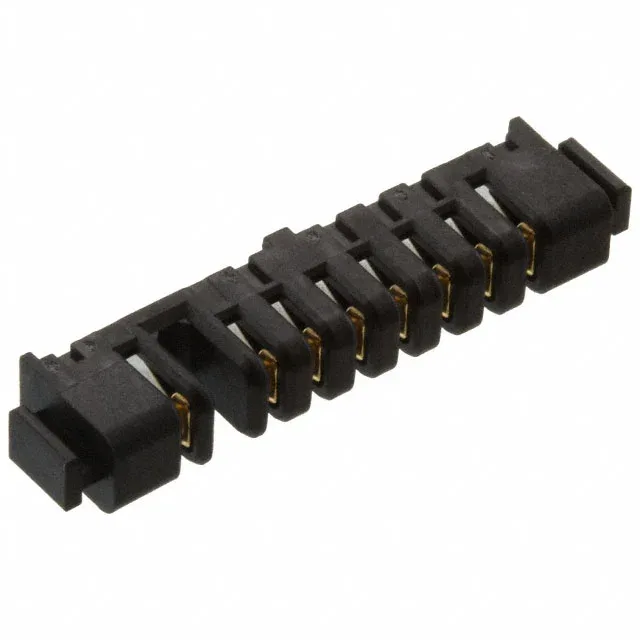

It is a right-angle through-hole solder part, intended for mounting at the edge of a PCB to interface directly with a battery pack or battery management system harness. The 30 V rating and gold-plated copper alloy contacts suit it for low-voltage DC power and sense circuits inside a battery compartment, where corrosion resistance and reliable contact over repeated mate cycles matter more than high current throughput.
Pitch and footprint — 2.50 mm for battery blade contacts
The 0.098" (2.50 mm) pitch accommodates the female blade sockets and maintains creepage for the 30 V rail.
Right-angle orientation and keyed housing
The keyed housing prevents a reverse-polarity mate — a common failure in battery interconnects where the harness is assembled in a tight enclosure and the technician cannot see the orientation.
Gold contacts and thermoplastic insulation
Gold contact finish on copper alloy blade sockets handles the corrosion risk from battery outgassing or humidity inside the device enclosure. The thermoplastic insulation body is standard for this class of connector — it holds the position tolerance across the reflow cycle and provides the flame resistance expected inside consumer or industrial equipment.
The part is ROHS3 compliant.
