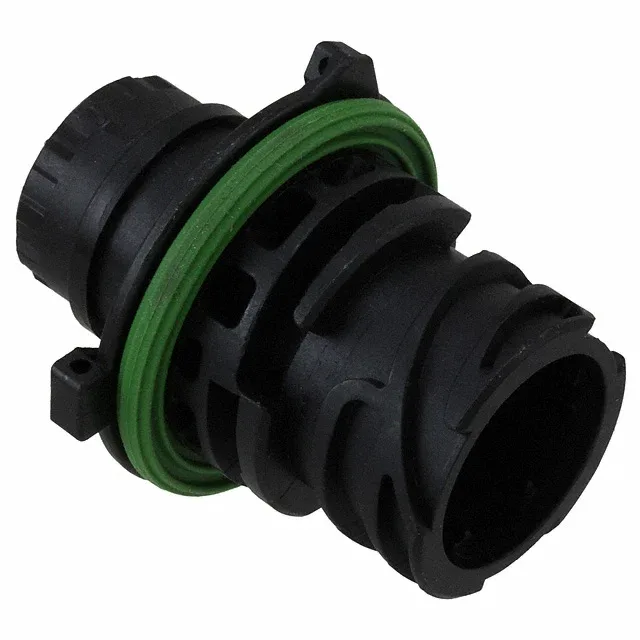

TE Connectivity AMP Connectors 1718230-3
MPN1718230-3
Active
CONN RCPT HSNG MALE 5POS PNL MT
$2.88Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series1.5mm System
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Male Pins |
| Series | 1.5mm System |
| Mounting | Panel Mount |
| Connector type | Receptacle Housing |
| Fastening type | Bayonet Lock |
| IP rating | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -40°C ~ 120°C |
| Housing color | Black |
| Shell material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 HB |
| Note | Contacts Not Included |
| Package | Bulk |
| Shielding | Unshielded |
| Orientation | A |
| Contact size | 1.5mm |
| Contact shape | Circular |
| Positions | 5 |
