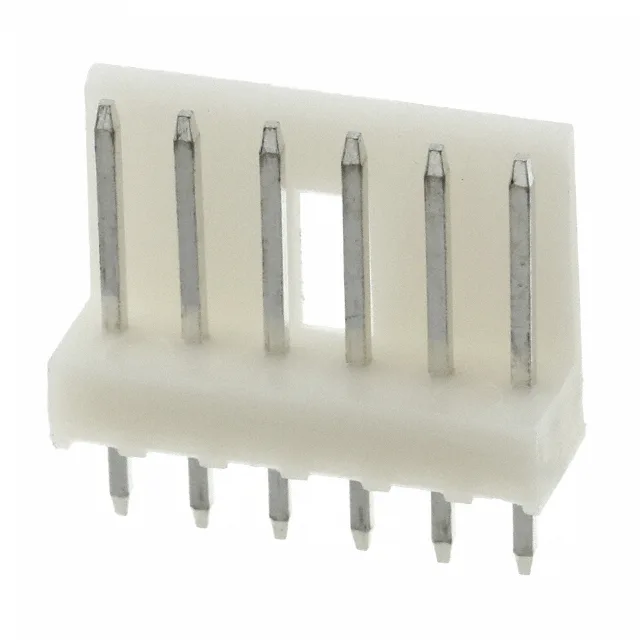

TE Connectivity AMP EI series, Board to Cable/Wire, Header, Male Pin, 6 Positions, 2.50 mm Pitch, Through Hole, Solder Termination, Shrouded - 1 Wall, Latch Holder, Tin Mating Finish, 2 A, 250 VAC, UL94 V-0
| Parameter | Value |
|---|---|
| Series | EI |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC, 350VDC |
| Current rating | 2A |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.409\" (10.40mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Overall contact length | 0.551\" (14.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 31.5µin (0.80µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 171825-6: Rated 2 A per contact at 250 VAC, 350 VDC — suitable for signal-level interconnects and low-power distribution in general-purpose equipment.
Mates with the EI series receptacle housing (same pitch, 6-circuit cavity). Termination is solder to through-hole PCB; the post length is 0.142" (3.60 mm) for standard board thickness.
Mates with the EI series receptacle housing (6-circuit, 2.50 mm pitch). The latch holder on the header engages with the receptacle's latch for vibration-resistant mating.
Yes, it has a 1-wall shroud — the shroud covers one side of the header to guide the receptacle and prevent mis-mating.
