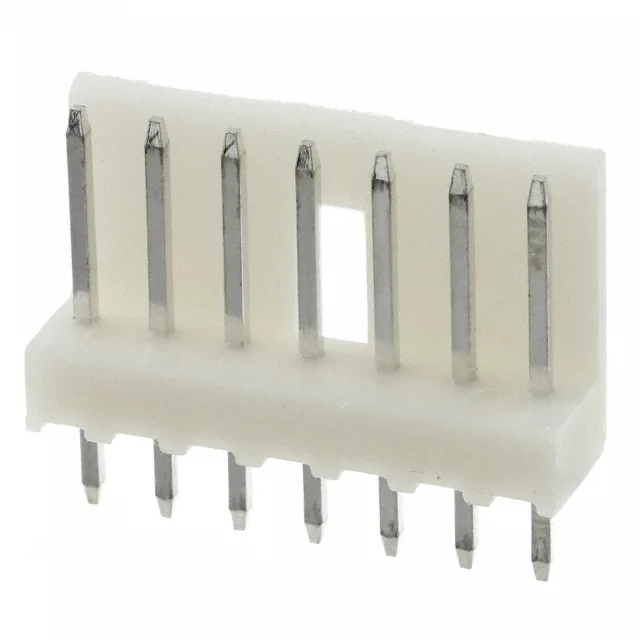

TE Connectivity AMP EI series, Board to Cable/Wire, Header, 7 Positions, 2.50 mm Pitch, Single Row, Through Hole, Solder, Shrouded - 1 Wall, Latch Holder, Tin Contacts, 2 A, 250 VAC/350 VDC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | EI |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC, 350VDC |
| Current rating | 2A |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.409\" (10.40mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Overall contact length | 0.551\" (14.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 31.5µin (0.80µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
Its 2.50 mm pitch and through-hole solder termination fit standard wire-to-board layouts.
The 2.50 mm pitch (0.098") and 0.142" (3.60 mm) post length define the PCB footprint and the through-hole drill size.
The mating pitch is 0.098" (2.50 mm), single row, 7 positions loaded.
