TE Connectivity AMP Connectors 172163-1 — Connector Housings

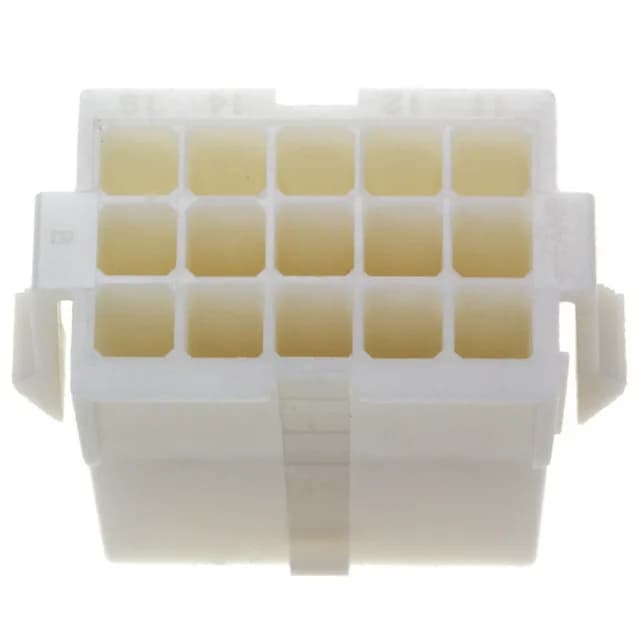

TE 172163-1 Mini-Universal MATE-N-LOK Receptacle Housing

MPN172163-1
Active

TE Connectivity Mini-Universal MATE-N-LOK receptacle housing, 172163-1, 15 positions, 3 rows, 0.163" (4.14mm) pitch, panel mount snap-in, locking ramp, natural PA66, crimp termination, contacts not included.

$1.3800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 172163-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesMini-Universal MATE-N-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

172163-1 specifications
ParameterValue
SeriesMini-Universal MATE-N-LOK
TypeMale or Female
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-55°C ~ 105°C
ColorNatural
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.163\" (4.14mm)
PackageBulk
Row spacing0.163\" (4.14mm)
Rows3
Contact terminationCrimp
Positions15

Product details

15-Position, 3-Row Receptacle Housing at 4.14 mm Pitch

The TE Connectivity 172163-1 is a 15-position receptacle housing from the Mini-Universal MATE-N-LOK series, laid out in three rows on a 0.163" (4.14 mm) pitch with matching 0.163" (4.14 mm) row spacing.

Panel Mount with Locking Ramp — No Contacts Included

Critical note for the BOM: contacts are not included. The housing accepts either male or female contact type, so it works as either a receptacle or a plug body depending on which terminal you load.

Frequently asked questions

Does 172163-1 include contacts?

No, the 172163-1 is a housing only — contacts are not included. You must order the matching male or female crimp terminals separately for this Mini-Universal MATE-N-LOK series.

What is the mating plug for 172163-1?

The 172163-1 receptacle housing mates with the corresponding Mini-Universal MATE-N-LOK plug (male header) housing of the same series, using the locking ramp fastening system. The exact mating half depends on your position count and contact gender requirements.
