15-Position Plug Housing for Mini-Universal MATE-N-LOK

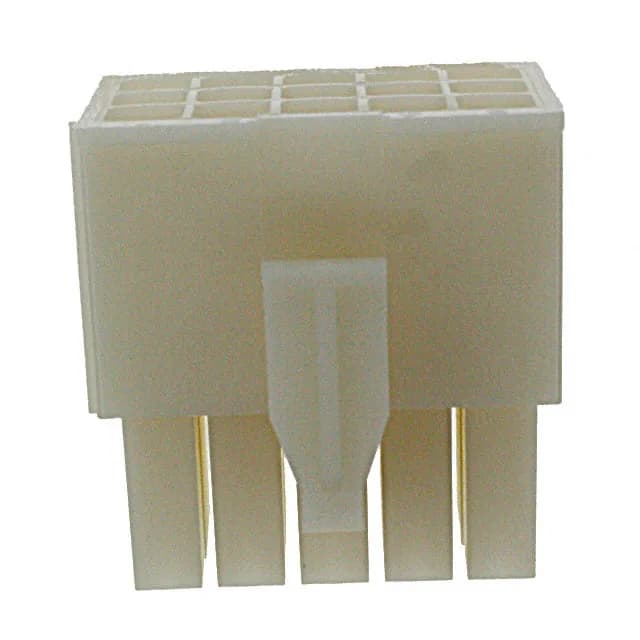

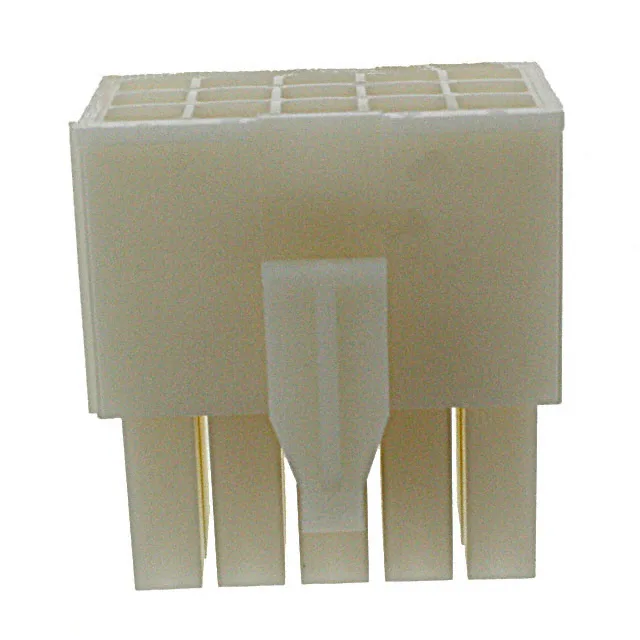

The TE Connectivity 172171-1 is a 15-position plug housing from the Mini-Universal MATE-N-LOK series, arranged in 3 rows on a 0.163" (4.14mm) pitch.
Contact Selection and Crimp Assembly
This housing accepts either male or female crimp contacts, so the same shell can serve as the plug half for either a pin or socket interface depending on the terminal loaded.
The 172171-1 mates with the corresponding Mini-Universal MATE-N-LOK pin header (typically a through-hole or right-angle board-mount header with the same 4.14mm pitch and 3-row layout). No separate strain relief is required for most applications — the latch lock provides primary retention, and the housing's free-hanging design lets the cable bundle take the strain without a backshell.
The 172171-1 is listed as Active and RoHS compliant.
