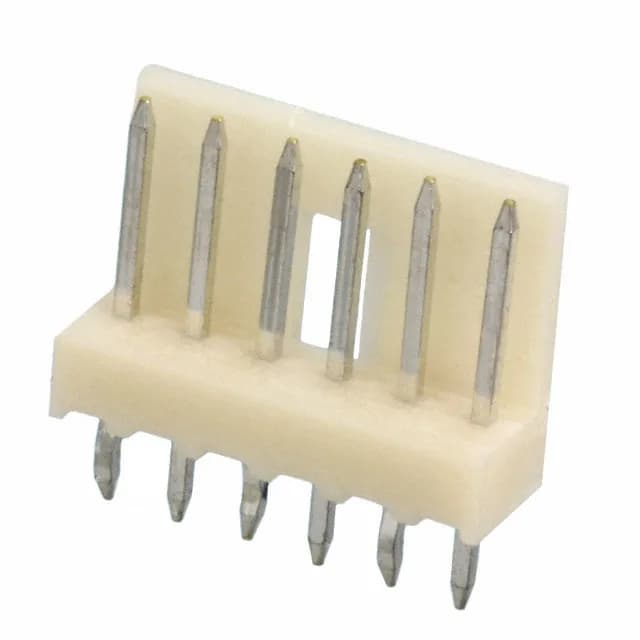

TE Connectivity EI header, order code 172732-6, 6 positions, single row, 2.50 mm pitch, 250VAC/350VDC, tin-plated mating contacts, through-hole, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | EI |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC, 350VDC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -20°C ~ 95°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.409\" (10.40mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Overall contact length | 0.551\" (14.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
The 172732-6 is the 6-circuit member of TE's EI shrouded header line, a single-row board-to-wire header rated 250VAC/350VDC with tin-plated mating contacts.
The single-wall shroud guides the mating receptacle; the latch holder secures the pair without additional hardware.
