Obsolete — What Replaces 1734081-1?
The TE Connectivity 1734081-1 is listed as Obsolete. No pin-compatible direct replacement is documented; any substitution requires a board-level review of the footprint, shield dimensions, and mating interface.

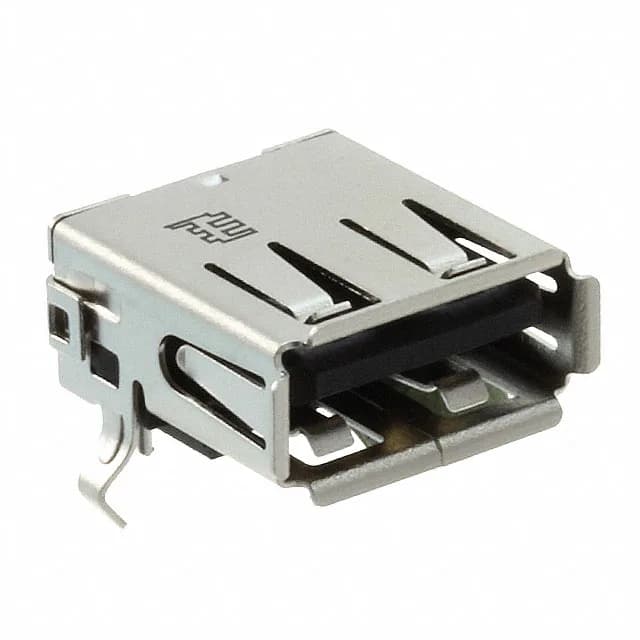

It is a single-port, right-angle through-hole mount with a horizontal orientation — the USB plug inserts parallel to the PCB. The shell is shielded (brass) for EMI containment, and the housing carries a board lock for solder-joint strain relief during cable insertion and removal.
Key Ratings and Fit
Rated 1.5 A per contact at 30 VAC — standard USB 2.0 power delivery for downstream ports. The 1500 mating cycles suit field-service equipment or test jig ports.
Right-angle through-hole solder termination — the pins pass through the PCB and are wave-soldered. The horizontal mounting feature means the USB port sits flush with the board edge, typical for rear I/O panels or card-edge applications.
