TE Connectivity AMP Connectors 1734798-8 — FFC / FPC & Ribbon Connectors

TE 1734798-8 FPC Connector, 8 Pos, 1.00mm, Obsolete

MPN1734798-8
Obsolete

TE Connectivity AMP Connectors FPC connector, order code 1734798-8, 8 positions, 0.039" (1.00mm) pitch, 0.5 A, 50 V, tin-plated bottom contacts, surface-mount right-angle, solder termination.

$1.0200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1734798-8 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1734798-8 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-20°C ~ 85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialThermoplastic, Glass Filled
Height above board0.126\" (3.20mm)
Material flammability ratingUL94 V-0

All specifications

1734798-8 additional specifications
ParameterValue
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions8
Contact finish thickness120.0µin (3.05µm)

Product details

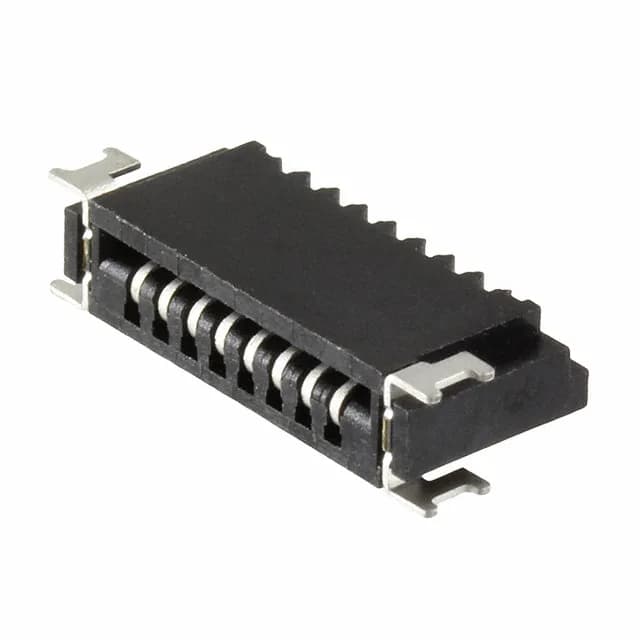

8-position FPC connector, 1.00 mm pitch

The 1734798-8 is an 8-circuit FPC connector from TE Connectivity AMP Connectors, accepting 0.30 mm-thick FPC with bottom contacts in a straight cable-entry orientation. Rated 0.5 A per contact at 50 V, the tin-plated phosphor bronze contacts carry a 120.0 µin (3.05 µm) finish. The glass-filled thermoplastic housing is rated UL94 V-0 and operates from -20°C to 85°C.

Lifecycle status: Obsolete

The 1734798-8 is listed as Obsolete by TE Connectivity AMP Connectors. Availability is confirmed at RFQ; quantities are lot-specific.

Frequently asked questions

Where can I buy the 1734798-8 and get a price?

The 1734798-8 is available through independent surplus channels and distributor inventory. Pricing and stock are confirmed at RFQ against the BOM quantity.

What is the pitch of the 1734798-8?

The pitch is 0.039" (1.00mm).

What package options are available for the 1734798-8?

The 1734798-8 is supplied in Tape & Reel (TR) and Cut Tape (CT) packaging.
