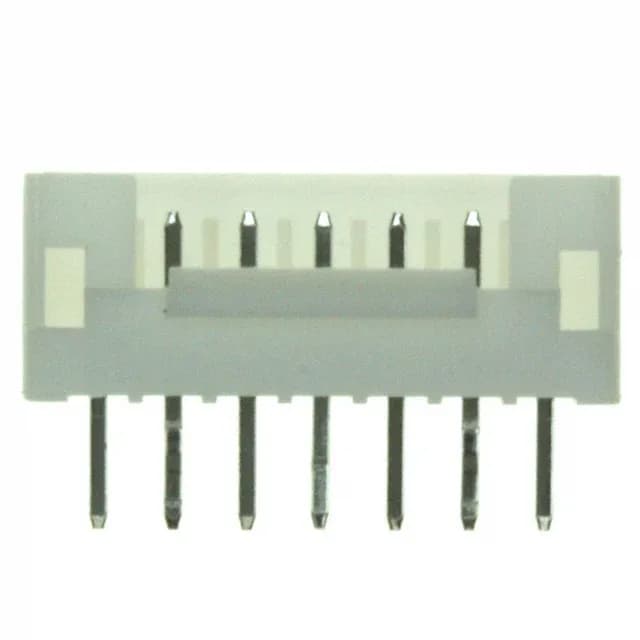

TE Connectivity AMP Connectors High Performance Interconnect (HPI) header, 1735446-7, 7 positions, 2.00mm pitch, single-row, shrouded 3-wall, male pin, locking ramp, press-fit and solder termination, 3A, 250V, UL94 V-0, natural insulation.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.239\" (6.07mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.132\" (3.35mm) |
The 1735446-7: This TE Connectivity HPI header is a single-row, 7-position, shrouded 3-wall male pin header on 2.00mm pitch, designed for board-to-cable/wire applications.
The termination supports both press-fit and solder — press-fit avoids the thermal cycle of wave soldering and allows rework without desoldering.
No stock-holding claim is made.
This is a single-row header with all 7 positions loaded. The contact length mating is 0.132" (3.35mm) and the post length is 0.134" (3.40mm). The pinout follows standard 2.00mm pitch spacing.
