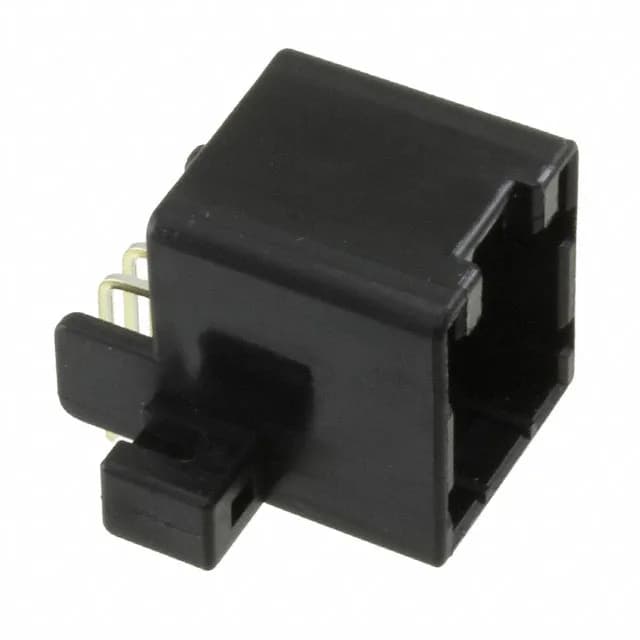

174049-2 TE Connectivity Multi-Lock Header, 8 Pos, 2.5mm

MPN174049-2
Active

TE Connectivity AMP Connectors Multi-Lock series, Board to Cable/Wire, 8 circuits, 0.098" (2.50mm) pitch, through hole right angle, shrouded 4-wall, locking ramp, tin contacts, -30°C to 105°C, Active.

$2.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMulti-Lock
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

174049-2 key specifications
ParameterValue
SeriesMulti-Lock
TypeTab
MountingThrough Hole, Right Angle
Fastening typeLocking Ramp
Current ratingVaries by Wire Gauge
Operating temperature-30°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.658\" (16.71mm)
Insulation materialPolybutylene Terephthalate (PBT)
StyleBoard to Cable/Wire
PackageBulk

All specifications

174049-2 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose
Contact shapeRectangular
Rows2
Pitch0.098\" (2.50mm)
Positions8
Row spacing - mating0.205\" (5.20mm)
Contact finish - postTin
Contact length - post0.157\" (4.00mm)
Contact finish - matingTin
Contact length - mating0.276\" (7.00mm)

Product details

8-Pin Right-Angle Header for Wire-to-Board

Pitch, Positions, and Plating

With 8 positions loaded across 2 rows at 0.098" (2.50mm) pitch and a row spacing of 0.205" (5.20mm), the 174049-2 offers a compact footprint for 8-circuit wire harnesses. The mating contact length is 0.276" (7.00mm), and the post length is 0.157" (4.00mm).

Current Rating and Termination

For a given wire size, derate per the TE application note. Termination is solder (through hole), with a mounting flange for additional PCB mechanical retention.

Sourced per RFQ — confirm current pricing and availability at time of order. No stock-holding claim; quoted against your BOM quantity.

Peer Comparison: 1-2232960-3

The 174049-2 offers 8 positions in a dual-row, right-angle configuration versus the 1-2232960-3's single-row, straight mounting — a different board footprint and circuit count.

Frequently asked questions

What is the mating connector for 174049-2?

As a Multi-Lock series header, it mates with the corresponding Multi-Lock receptacle housing and crimp terminals (e.g., TE part numbers in the 17404x or 17216x series). Confirm the exact mating half with the TE application note for your wire gauge and circuit count.
