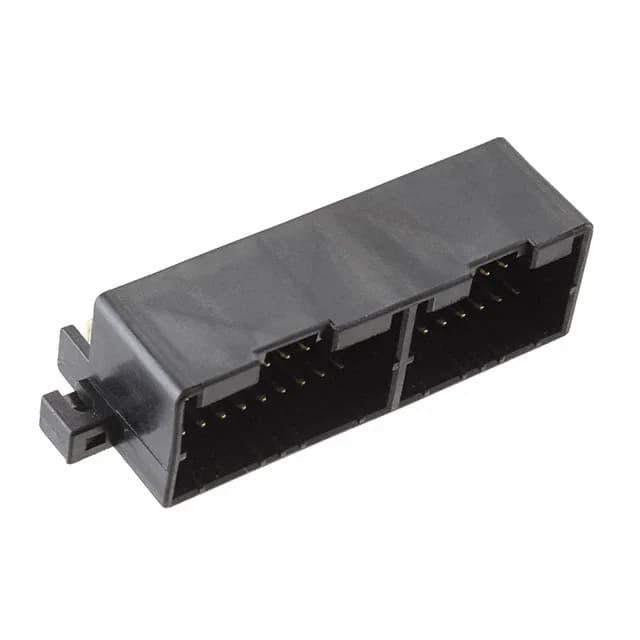

TE 174146-2 Multi-Lock Header R/A 36 Pos 2.5mm

MPN174146-2
Active

TE Connectivity AMP Connectors Multi-Lock, 174146-2, Board to Cable/Wire, 36 positions, 2 rows, 0.098" (2.50mm) pitch, shrouded 4-wall, right-angle through-hole, locking ramp, tin-plated brass contacts.

$5.1200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMulti-Lock
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

174146-2 key specifications
ParameterValue
SeriesMulti-Lock
TypeTab
MountingThrough Hole, Right Angle
Fastening typeLocking Ramp
Current ratingVaries by Wire Gauge
Operating temperature-30°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.658\" (16.71mm)
Insulation materialPolybutylene Terephthalate (PBT)
StyleBoard to Cable/Wire
PackageTube

All specifications

174146-2 additional specifications
ParameterValue
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose
Contact shapeRectangular
Rows2
Pitch0.098\" (2.50mm)
Positions36
Row spacing - mating0.205\" (5.20mm)
Contact finish - postTin
Contact length - post0.157\" (4.00mm)
Contact finish - matingTin
Contact length - mating0.276\" (7.00mm)

Product details

Right-angle 36-position header with locking ramp

The 0.098" (2.50mm) pitch and 0.205" (5.20mm) row spacing define the PCB footprint — a compact but not micro-pitch layout that suits automotive and general-purpose harnesses.

The tin-plated brass contacts are rated for the Multi-Lock terminal system; expect the full rated current only when using the recommended TE crimp terminals and the correct wire gauge. The PBT insulation material (UL94 V-0 rated) holds up to the heat and resists fuel/oil exposure common in engine compartments.

Supplied in tube packaging. No direct drop-in equivalent from other series is documented — stick with the Multi-Lock family for guaranteed fit.

Frequently asked questions

How can I order 174146-2 or check availability?

174146-2 is active and RoHS compliant. We source it per RFQ — submit your target quantity and we'll confirm lead time and pricing at quote. No stock-holding claim; we source from the franchise channel.

What is the pitch of TE 174146-2?

The mating pitch is 0.098" (2.50mm) with a row spacing of 0.205" (5.20mm). The contact length on the mating side is 0.276" (7.00mm).

What mates with 174146-2?

This header mates with the Multi-Lock receptacle housing and matching crimp terminals. The locking ramp on the header engages with the receptacle latch for a vibration-proof connection. Use TE's crimp terminals rated for your wire gauge — the current rating depends on that choice.
