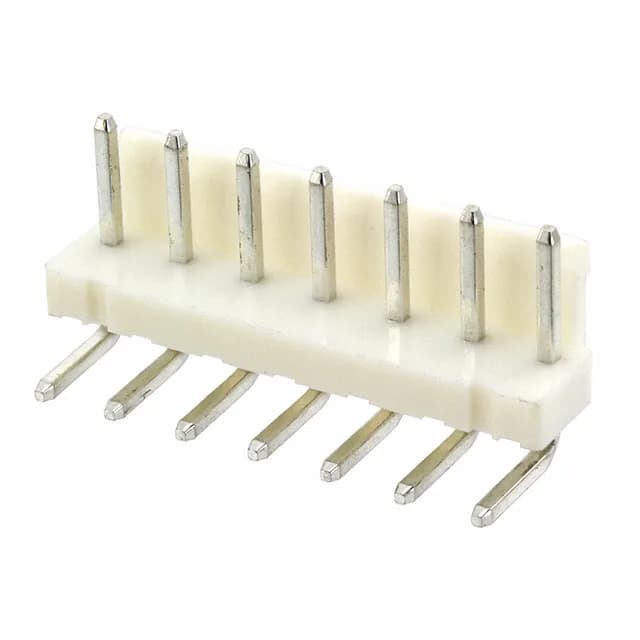

TE Connectivity AMP Connectors Economy Power header, order code 1744048-7, 7 positions, single row, 5.08 mm pitch, 7.5 A, 250 VAC, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.338\" (8.59mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1744048-7 is the 7-circuit member of TE's Economy Power header line, a board-to-cable/wire shrouded header with a single row of tin-plated contacts at 5.08 mm pitch.
The single-wall shroud guides the receptacle during mating, and the friction lock holds the pair together without a secondary latch — a detail that saves time during panel wiring or field replacement.
The 1744048-7 is available to order against a BOM quantity. Request a quote for current pricing and availability.
RoHS and REACH compliance documentation is available through the manufacturer's product page.
