9-circuit Economy Power header with friction lock
The 1744057-9 is the 9-circuit member of TE's Economy Power header line, a shrouded single-row board-to-cable/wire connector with a friction lock for mating retention.

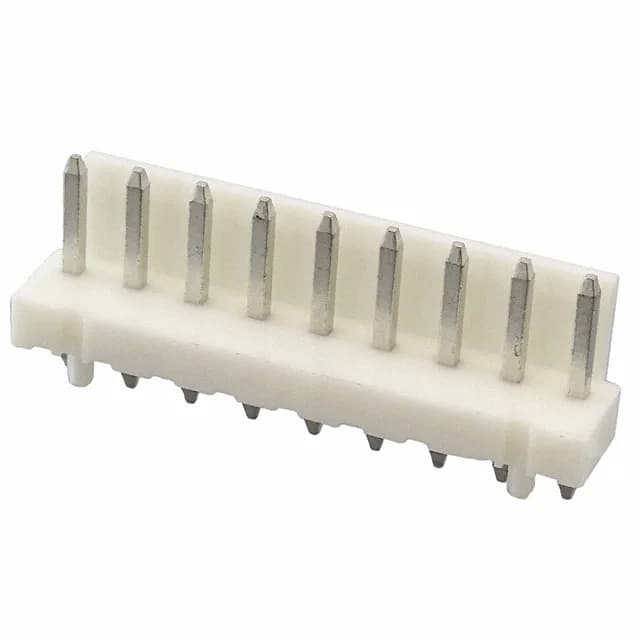

TE 1744057-9 Header, 9-Pos 3.96mm, Economy Power
MPN1744057-9
Active
TE Connectivity AMP Connectors Economy Power header, order code 1744057-9, 9 positions, single row, 0.156" (3.96 mm) pitch, 7.5 A, 250 VAC, tin-plated mating contacts, through-hole, solder termination.
$0.3524Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.127\" (3.22mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Overall contact length | 0.575\" (14.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
| Contact finish thickness - post | 120.0µin (3.05µm) |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
Product details
Frequently asked questions
Who supplies 1744057-9 and how is it quoted for volume purchases?
TE Connectivity AMP Connectors supplies the 1744057-9.
What is 1744057-9's listed style and series?
The style is Board to Cable/Wire and the series is Economy Power.
